Product introduction
This automatic filling unit is developed for low-fluidity pastes, thick fluids and particle-containing viscous materials. Adopting servo metering, anti-drip and stable pressure feeding core tech, it solves industry pain points such as blockage, uneven discharging, dripping and splashing. It serves standardized mass production of viscous materials in food, daily chemical, pharmaceutical and chemical industries.
product Parameter(specification)
Except for the high-rigidity support structure, all other parts of the equipment are made of food-grade stainless steel with a special customized surface treatment process. The equipment is compatible with four types of box packaging substrates with bottom dimensions of 57×57mm, 70×70mm, 83×83mm and 95×95mm. Only one specification can be selected for single operation, and mixed compatibility of multiple specifications is not supported. The standard production capacity of the equipment is 3000 boxes per hour. Different box sizes correspond to exclusive filling volumes: 57×57mm box for 250-500ml, 70×70mm box for 500-1000ml, 83×83mm box for 1000-1500ml, and 95×95mm box for 1500-2000ml.
The equipment supports two production modes of capping and non-capping, realizing dual functions on one machine. The applicable lid size ranges from 26-36mm, and only one mode can be selected during operation. The filling process is carried out at room temperature, and the total power of the equipment is 25KW with three-phase power supply. The product shelf life is not fixed, which depends on the material type and production technology. The compressed air required features a pressure of 1.0-1.4Mpa, a flow rate of 1.4-2m³/min, and oil-free and dust-free purity. The cooling water needs to meet a flow rate of ≥40L/min and a temperature of 30℃. The overall dimension of the equipment is 4m×1.4m×2.8m (length×width×height) with a total weight of 3500KG. The equipment can be installed on cement floor, tile floor and plastic floor without corner plastering. In addition, the equipment is equipped with the company's exclusive filling enhancement technology to effectively avoid liquid foaming and splashing during filling.
product feature and application
1.Stably handles medium, high and ultra-high viscosity materials, compatible with particle-free, fine-particle and pulp-containing thick slurry without pipeline blockage or material jamming, strong versatility.
2.Servo stable-pressure metering system delivers pulse-free continuous paste discharging with tiny filling deviation, cutting loss of high-cost paste raw materials.
3.Full-process computer automatic control requires only one staff for line supervision, reducing labor input and operation cost.
Application:
Food: honey, sesame paste, jam, cream, fillings;
Daily chemical: face cream, body lotion, toothpaste, hair cream;
Pharmaceutical: ointment, medical gel;
Chemical: paint, adhesive and other high-viscosity materials.
product details

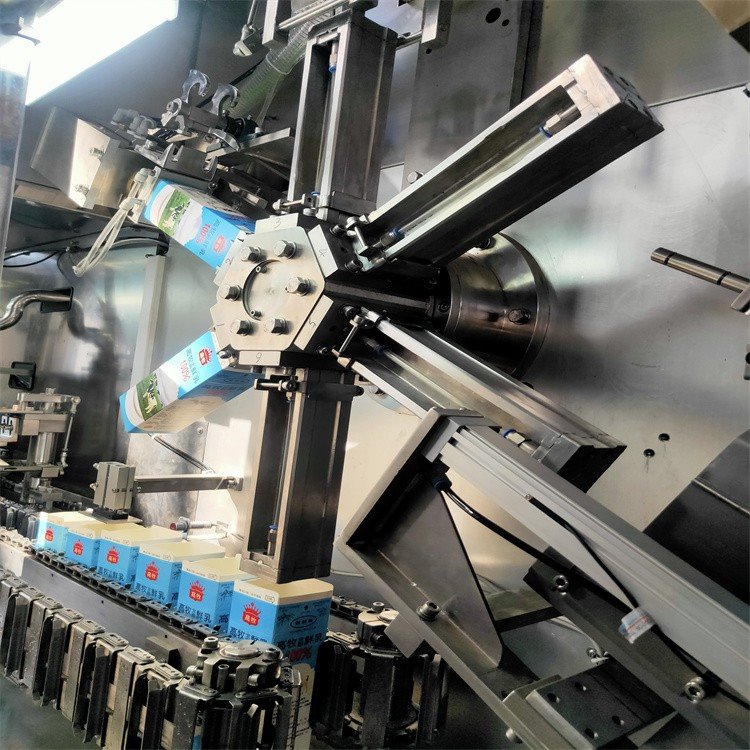

Bottom pre-forming of carton sheets → Bottom hot-air drying shaping → Bottom sealing & closing → Ultrasonic film reinforcement → Top pre-forming → Quantitative paste filling → Top sealing shaping → Date coding → Finished collection & packaging
product qualification
The machine adopts mature servo stable-pressure feeding tech to solve blockage, uneven discharging and high loss of high-viscosity materials. Core components are top brands with low failure rate and adjustable metering range. Batch filling deviation is stably controlled within a tiny range, meeting safety standards for food, daily chemical and pharmaceutical machinery.
Deliver, shipping and serving
To fully meet customers' operational and after-sales demands, we provide a complete set of industrial supporting services. In terms of business assistance, we offer accurate market forecasting and professional profit analysis, and organize standardized visits and inspections for relevant enterprises. In terms of technical training, we deliver comprehensive courses combining theory and practice. In terms of equipment services, free on-site installation and debugging are available (overseas services comply with bilateral agreements), supported by a 48-hour rapid on-site response system. For product guarantee, all equipment enjoys one-year full machine warranty and lifelong service. Meanwhile, we continuously supply industry technical intelligence and provide long-term follow-up services for equipment upgrading and updating.
FAQ
Q1: What are the production capacities of the gusseted pouch filling machines? Is the speed adjustable?
A1: Our gable top carton filling machines come in multiple models with production capacities ranging from 500 to 6000 cartons per hour. Equipment can be customized based on clients' production requirements and filling contents. Additionally, the machines support one-touch switching of filling volumes. Within the capacity range of the selected model, filling speed can be flexibly adjusted to accommodate different production rhythms.
Q2: What are the advantages of the core technologies used in the equipment?
A2: The core technologies offer significant advantages:
① High-precision filling valves ensure filling accuracy with an error margin ≤±1%, guaranteeing uniform product volume per pouch;
② An intelligent control system enables simple and convenient operation, allowing real-time monitoring of production parameters for timely adjustments and maintenance.
