Product introduction
Developed exclusively for high-viscosity raw materials prone to wire drawing and wall adhesion, this quantitative filling device targets honey, syrup and propolis liquid processing. Under semi-automatic operation (manual container positioning + automatic metering filling), it solves typical industry pain points including material dripping, residual drawing lines and volume inaccuracy during filling, lifting packaging yield and operation stability for sticky honey-based materials.
product Parameter(specification)
| Filling Volume | 200–1000 ml (single machine compatible with full range) |
| Output Capacity | 800–1200 cartons per hour |
| Packaging Material | Paper roof cartons or aluminum foil-lined roof cartons Carton bottom dimensions (only one size can be selected): 95×95 mm, 70×70 mm, 57×57 mm |
| Filling Temperature | 2–94 ℃ |
| Shelf Life | Subject to product category and production process |
| Total Installed Power | 22 kW (3-phase industrial power supply) |
| Overall Dimensions |
Carton Forming Machine: 1.3 × 0.9 × 1.50 m Capping Machine: 0.8 × 0.6 × 1.2 m Filling Machine: 2.0 × 0.9 × 2.6 m |
| Compressed Air Requirement | Flow rate: 0.8–1.0 m³/min; Pressure: 1.0–1.4 MPa; Oil-free & dust-free air |
| Cooling Water Requirement | Flow rate: ≥20 L/min; Temperature: Ambient temperature |
| Net Weight: 1200 KG | Caton Forming Machine: 300 KG; Filling Machine: 800 KG; Capping Machine: 100 KG |
| Installation Requirements | Compatible with cement, tile and plastic flooring; foundation anchoring is not required. |
| Exclusive lifting filling function developed by our company to prevent liquid foaming and splashing during filling. | |
The whole production line is controlled by PLC programs and requires 4 operators. All equipment components except the support frames are made of food-grade stainless steel with specially treated surfaces for an elegant appearance.
product feature and application
This filler serves beekeeping cooperatives, honey processing factories, agricultural product deep-processing enterprises, e-commerce supply chains and manual workshops. It realizes quantitative filling for various viscous honey derivatives: raw honey, concentrated honey, flavored honey, propolis extracts and honey syrup. It adapts flexibly to trial small packages, portable retail packs, household large-volume containers and festival gift batch production. It makes up for the defects of large full-automatic lines including high capital input, poor flexibility and incompatibility with small orders, becoming mainstream filling equipment for medium & small honey producers.
product details
Carton Forming Machine
This unit processes blank gable-top carton sheets through standardized workflows. Manual carton feeding and bottom pre-folding shaping are required. After thermal treatment on carton bottoms, the machine finishes sealing and integral forming to produce semi-finished gable cartons with open tops.
Capping Machine
Cap assembly requires manual positioning of carton bodies and matching caps. High-frequency ultrasonic welding completes cap fixation, creating semi-finished cartons with caps attached and open top mouths.

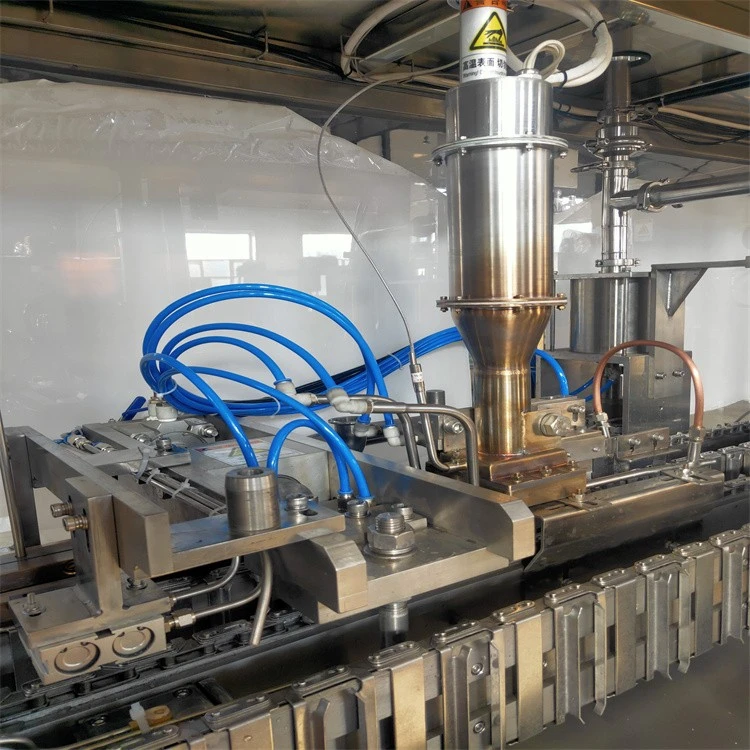

Filling Machine
Operators manually place empty cartons on conveyor pipelines. The machine automatically executes a full series of steps: top edge folding, material filling, top sealing shaping and production date marking, and finally outputs finished gable-top packaged products. The filling machine supports unattended full-automatic running via computer programming, whereas carton forming and capping devices adopt electric automatic control to realize standardized production
product qualification
Structural optimization is conducted according to honey's physical traits including high viscosity, wire drawing and poor fluidity, solving traditional filler drawbacks such as liquid dripping, wall adhesion, volume deviation and messy bottle mouths. Produced in compliance with food machinery industrial standards, it is fitted with premium brand core electric control, metering and pump components to guarantee stable operation and extended service lifespan.
Deliver, shipping and serving
Launch customized market analysis and profit forecasting services to assist customers in formulating targeted business strategies.
Execute on-site factory tours and equipment inspection programs for partner enterprises as required.
Provide integrated training solutions including theoretical lectures and hands-on skill training for enterprise operators.
Free on-site installation guidance and commissioning are available for domestic orders; all overseas on-site service operations shall comply with bilateral cooperation agreements.
Our service team provides on-site solutions within 48 hours once customers submit service applications.
A standard 12-month full warranty applies to all complete machine sets, alongside lifelong technical consultation and supporting services.
Continuously update and deliver the latest industrial technical documents, market trends and professional intelligence to cooperative clients.
Offer long-term follow-up technical support covering equipment upgrading, performance optimization and new function expansion.
FAQ
Q1: What are the production capacities of the gusseted pouch filling machines? Is the speed adjustable?
A1: Our gable top carton filling machines come in multiple models with production capacities ranging from 500 to 6000 cartons per hour. Equipment can be customized based on clients' production requirements and filling contents. Additionally, the machines support one-touch switching of filling volumes. Within the capacity range of the selected model, filling speed can be flexibly adjusted to accommodate different production rhythms.
Q2: What are the advantages of the core technologies used in the equipment?
A2: The core technologies offer significant advantages:
①High-precision filling valves ensure filling accuracy with an error margin ≤±1%, guaranteeing uniform product volume per pouch;
②An intelligent control system enables simple and convenient operation, allowing real-time monitoring of production parameters for timely adjustments and maintenance.
