Product introduction
Custom-built for viscous fermented dairy materials like yoghurt and fermented milk, this semi-automatic quantitative filler adopts human-machine collaborative operation: workers manually place empty containers, and the machine independently completes accurate metering filling to balance flexibility and filling precision. Equipped with a high-precision volume adjustment system, it works well with yoghurt bottles, plastic cups and packaging pouches. It acts as an ideal processing device for medium & small dairy production lines, private manual workshops and new fermented dairy trial projects.
product Parameter(specification)
The whole production line is controlled by PLC programs and requires 4 operators. All equipment components except the support frames are made of food-grade stainless steel with specially treated surfaces for an elegant appearance.
| Filling Volume | 200–1000 ml (single machine compatible with full range) |
| Output Capacity | 800–1200 cartons per hour |
| Packaging Material | Paper roof cartons or aluminum foil-lined roof cartons Carton bottom dimensions (only one size can be selected): 95×95 mm, 70×70 mm, 57×57 mm |
| Filling Temperature | 2–94 ℃ |
| Shelf Life | Subject to product category and production process |
| Total Installed Power | 22 kW (3-phase industrial power supply) |
| Overall Dimensions |
Carton Forming Machine: 1.3 × 0.9 × 1.50 m Capping Machine: 0.8 × 0.6 × 1.2 m Filling Machine: 2.0 × 0.9 × 2.6 m |
| Compressed Air Requirement | Flow rate: 0.8–1.0 m³/min; Pressure: 1.0–1.4 MPa; Oil-free & dust-free air |
| Cooling Water Requirement | Flow rate: ≥20 L/min; Temperature: Ambient temperature |
| Net Weight: 1200 KG | Caton Forming Machine: 300 KG; Filling Machine: 800 KG; Capping Machine: 100 KG |
| Installation Requirements | Compatible with cement, tile and plastic flooring; foundation anchoring is not required. |
| Exclusive lifting filling function developed by our company to prevent liquid foaming and splashing during filling. | |
product feature and application
The whole unit is manufactured strictly following food machinery production standards and assembled with premium brand core components to guarantee long-term stable operation. Verified via real production tests on filling precision, sanitary performance and continuous running stability, it fully meets standardized long-term production demands for all types of fermented dairy products
product details
Carton Forming Machine
Processing takes original gable-top carton blanks as raw materials. Operators complete carton feeding and manual bottom pre-folding. The equipment then performs bottom thermal treatment, combined sealing and forming, outputting semi-finished gable cartons with open tops.
Capping Machine
Before operation, staff manually place caps and carton workpieces in position. Ultrasonic welding technology enables stable bonding between caps and cartons, generating semi-finished cartons fitted with caps yet unsealed at the top.

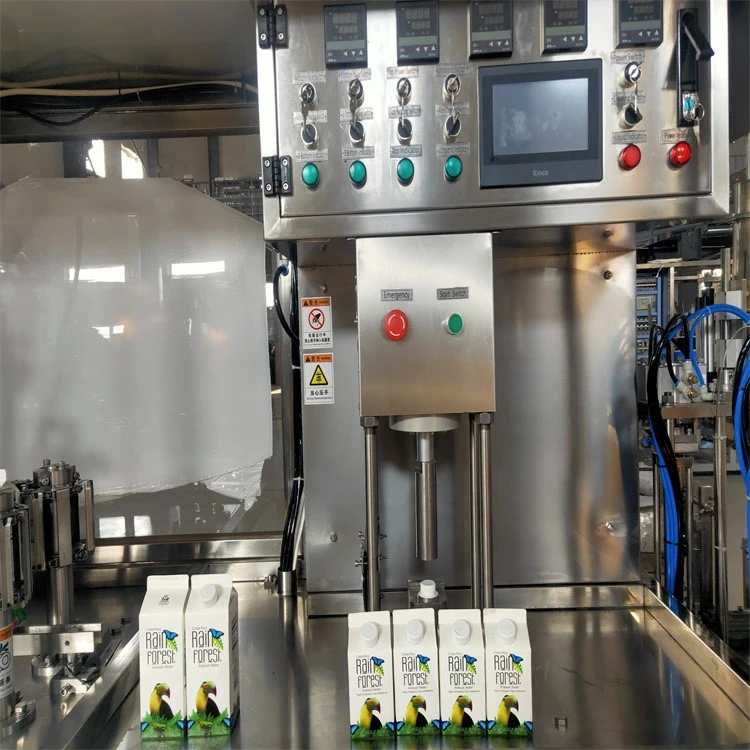

Filling Machine
Operators load empty cartons onto the conveying system manually. A full automatic production cycle includes top edge pre-folding, quantitative material filling, top sealing & shaping and automatic date stamping, delivering standard finished gable-top packaging products. Distinct from auxiliary units, the filling machine adopts full-process computer program automation, while carton forming and capping machines run on electric automatic control schemes.
product qualification
The complete unit is manufactured following official food machinery industry standards and equipped with high-quality brand core components to secure stable and long-lasting operation. Its filling precision, sanitation grade and production efficiency have been validated through real production trials, supporting long-term standardized dairy manufacturing.
Deliver, shipping and serving
Supply customized market trend analysis and profit prediction services to help customers formulate complete business plans.
Organize on-site factory visits and equipment inspection activities for partners in accordance with agreed demands.
Deliver comprehensive training systems including theoretical teaching and practical operation & maintenance guidance for factory staff.
Complimentary on-site installation and commissioning guidance will be arranged during delivery; all overseas on-site service items shall abide by the terms agreed by both parties.
Our service team will arrive on-site and deliver targeted solutions within 48 hours after receiving customer fault reports.
Every complete unit enjoys a full one-year warranty, and our company provides continuous lifelong technical consulting services.
Regularly organize and share professional industry technical resources and market information with clients.
Supply long-term supporting technical services for equipment performance optimization, functional expansion and technical renovation.
FAQ
Q1: How can I obtain detailed equipment specifications and pricing?
A1: You may obtain detailed specifications and quotes through the following methods:
①Visit our official website (www.sybeiya.com) and check the detailed parameters of the gable top carton filling machine in the Product Center section, or submit an online inquiry;
②Directly call our sales hotline (+8613840309495) to discuss your requirements with a sales consultant and receive a precise quotation;
③Bring your product samples and requirement specifications to our factory for an on-site visit. We will arrange for professionals to provide detailed product introductions and quotation proposals.
Q2: What products is your gable top carton filling machine primarily suitable for?
A2: Our gable top carton filling machines have a wide range of applications, suitable for filling beverages such as milk, juice, water, cream, egg liquid, red wine, rice wine, whiskey, and more. The equipment accommodates beverages of varying viscosities and meets filling requirements for products stored under different conditions, including ambient and low temperatures. Additionally, it can handle special products like powders, granules, and pet food.
