Product introduction
The aseptic packaging machine is an integrated automatic equipment for aseptic filling and sealing. It completes the whole process of material filling, sealing and packaging in a closed sterile environment. The equipment performs multi-stage sterilization on packaging materials, production cavities and materials, isolating bacterial, mold and microbial contamination throughout the process. Without preservatives, it enables long-term room-temperature storage of food, beverage and pharmaceutical materials. It is widely applicable to the standardized mass production of liquid and paste materials, serving as the core intelligent equipment for aseptic deep processing in the food and pharmaceutical industries.
product Parameter(specification)
|
1. Equipment Material |
All parts except high-rigidity supports are food-grade stainless steel with special surface treatment for safety compliance; |
|
2. Packaging Specifications |
Compatible with four box bottom sizes of 57×57mm, 70×70mm, 83×83mm and 95×95mm, only one specification for single operation; |
|
3. Production Capacity |
Output reaches 3000 boxes per hour; |
|
4. Filling Volume |
250-500ml (57×57mm), 500-1000ml (70×70mm), 1000-1500ml (83×83mm), 1500-2000ml (95×95mm); |
|
5. Lid Mode |
Integrated capping/non-capping functions, applicable lid size 26-36mm, single mode selection only; |
|
6. Filling Condition |
Full room-temperature filling; |
|
7. Equipment Power |
Rated total power 25KW, three-phase power supply; |
|
8. Shelf Life |
Determined by product category and production process; |
|
9. Compressed Air |
Working pressure 1.0-1.4Mpa, flow rate 1.4-2m³/min, oil-free and dust-free air source; |
|
10. Cooling Water |
Water flow ≥40L/min, constant water temperature 30℃; |
|
11. Equipment Dimension |
4m×1.4m×2.8m (L×W×H); |
|
12. Equipment Weight |
Net weight 3500KG; |
|
13. Installation Condition |
Suitable for cement, tile and plastic floors, no corner plastering required; |
|
14. Core Advantage |
Equipped with exclusive filling enhancement function to prevent liquid foaming and splashing during filling. |
product feature and application
The aseptic packaging machine is widely applied in food and beverage, biomedicine, daily chemical and other industries. In the food and beverage industry, it is suitable for aseptic packaging of room-temperature milk, yogurt, fruit juice, vegetable and fruit beverages, plant protein drinks, functional drinks, sauces and dairy products. In the biomedical industry, it applies to the filling and sealing of sterile preparations such as medical nutrient solutions, injection liquids, external disinfectants and pharmaceutical pastes. In the daily chemical industry, it is used for the production of sterile skin care stock solutions and antibacterial care solutions. It meets the production needs of small and medium-sized factories and large-scale assembly line production of enterprises, adapting to multi-category sterile production scenarios including civilian consumer goods and medical supplies.
product details

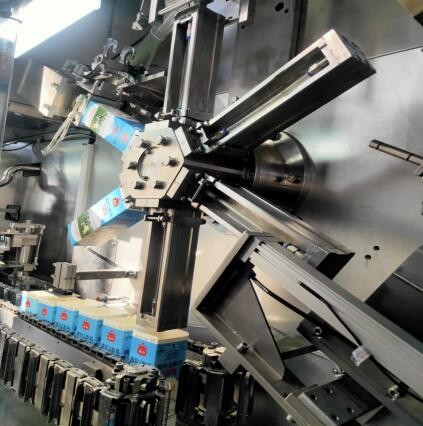

Professional roof box production process: paper sheet base bottom pre-processing, bottom heating curing and shaping, bottom sealing forming, ultrasonic surface film covering and fitting, top pre-shaping and forming, material filling and adding, top sealing and closing, production date marking and spraying, and standardized packaging of finished products. The whole process is uniformly controlled by a computer intelligent system with full-automatic operation, and only single-person on-duty can ensure the orderly progress of production.
product qualification
The equipment strictly complies with ISO clean production standards. The core sterilization and filling system has passed tens of millions of mass production tests with stable sterilization performance and reliable sealing, eliminating microbial pollution from the source and ensuring the sterility and qualification of every product batch.
Deliver, shipping and serving
Market Service: Provide professional market forecasting and profit analysis solutions for clients.
Enterprise Service: Organize on-site visits and inspection activities for relevant cooperative enterprises.
Training Service: Deliver all-round systematic training of theory and practical operation.
Equipment On-site Service: Free installation & debugging guidance (overseas implementation as per bilateral agreements).
Response Service: 48-hour efficient on-site service response.
Warranty Service: 1-year full machine warranty + lifelong exclusive service.
Intelligence Service: Continuous industry technology and market intelligence update.
Upgrade Service: Professional follow-up support for equipment update and improvement.
FAQ
Q1: Does the equipment support customization?
A1: Customization services are available. We can tailor gable top carton filling machines to specific client requirements, including adapting filling processes for unique beverages, accommodating special packaging specifications, and integrating additional functional modules to deliver bespoke solutions.
Q2: What products is your gable top carton filling machine primarily suitable for?
A2: Our gable top carton filling machines have a wide range of applications, suitable for filling beverages such as milk, juice, water, cream, egg liquid, red wine, rice wine, whiskey, and more. The equipment accommodates beverages of varying viscosities and meets filling requirements for products stored under different conditions, including ambient and low temperatures. Additionally, it can handle special products like powders, granules, and pet food.
