Product introduction

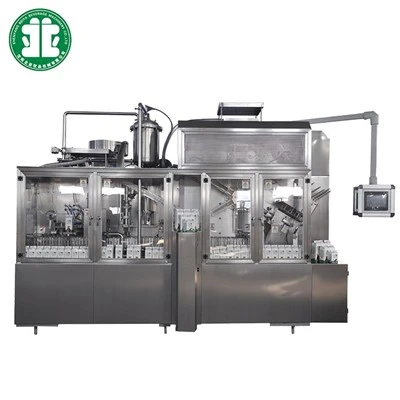

The carton hot filling machine is a special automatic hot filling equipment adapted to paper packaging containers. Based on the high-temperature hot filling process, it integrates carton forming, sterilization, quantitative filling, sealing and finished product output. Adopting a fully automatic closed-loop control system, the equipment can complete liquid material filling in a high-temperature and sterile environment, extending the shelf life of products without preservatives. It is widely suitable for the carton packaging production of various food and beverage liquid materials, and serves as the core equipment for large-scale and standardized production in the food and beverage industry.

product Parameter(specification)

Parameter Item	Specific Parameter Details
Equipment Main Material	Except high-rigidity supports, all parts are food-grade stainless steel with special surface treatment
Packaging Box Specification	Optional box bottom sizes: 57×57mm, 70×70mm, 83×83mm, 95×95mm (single specification only for operation, no mixed compatibility)
Hourly Output	3000 boxes per hour
Graded Filling Capacity	57×57mm: 250-500ml; 70×70mm: 500-1000ml; 83×83mm: 1000-1500ml; 95×95mm: 1500-2000ml
Lid Operation Mode	Dual modes of capping/non-capping, applicable lid size 26-36mm, single mode operation at one time
Filling Temperature	Room temperature filling
Total Equipment Power	25KW (three-phase power supply)
Product Shelf Life	Depends on product type and production process, no fixed value
Compressed Air Requirements	Pressure 1.0-1.4Mpa, flow rate 1.4-2m³/min, oil-free and dust-free air source
Cooling Water Working Condition	Flow rate ≥40L/min, water temperature 30℃
Equipment Overall Dimension	Length 4m × Width 1.4m × Height 2.8m
Total Equipment Weight	3500KG
Installation Site Requirements	Suitable for cement, tile and plastic floors, no corner plastering required
Equipment Core Function	Exclusive filling enhancement technology to prevent liquid foaming and splashing during filling

product feature and application

Adopting mature hot filling technology, it eliminates bacterial contamination of materials through high-temperature sterilization. The fully enclosed filling environment ensures material purity. Finished products can be stored at room temperature without preservatives, meeting healthy consumption demands.This equipment is widely used in food, beverage, health food and other industries, mainly adapted to the carton filling and packaging of normal-temperature liquid products.

product details

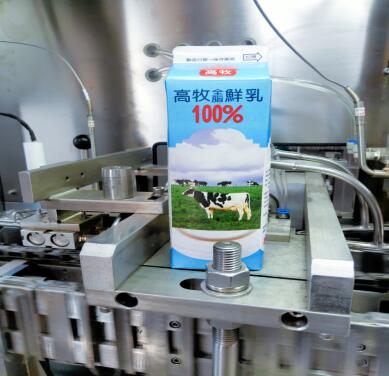

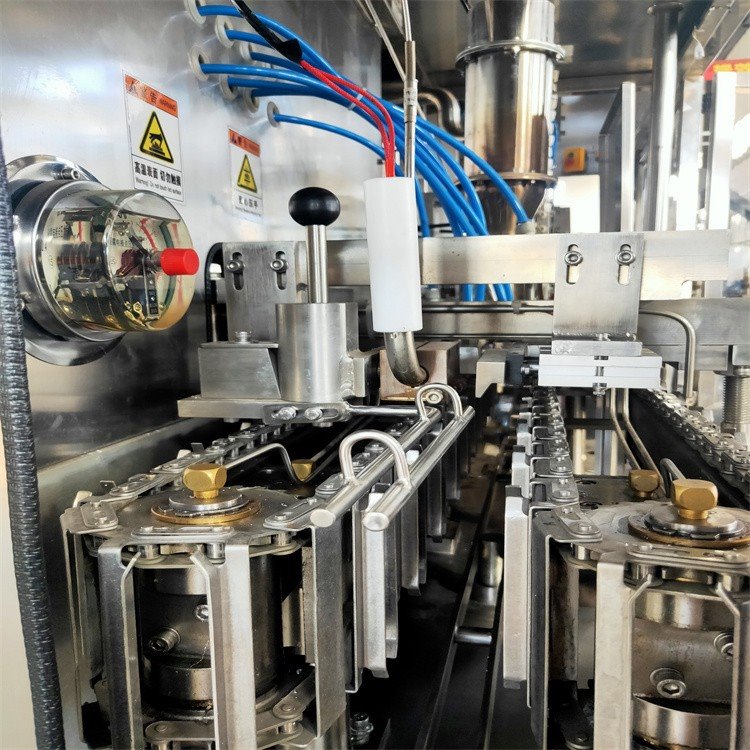

Whole processing flow of finished roof boxes: raw paper sheet bottom pre-forming, bottom heating shaping treatment, bottom sealing forming and sealing, ultrasonic covering processing, top pre-forming treatment, internal filling and filling, top sealing forming, product valid date printing, and finished product packaging and factory delivery. The whole set of production procedures realizes full-automatic computer control and operation without multi-person on-duty, and a single person can complete full-line production supervision.

product qualification

This carton hot filling machine complies with the safety production standards of the food industry, and its core configuration adopts mature industry technology. The whole-process sterile hot filling process can effectively ensure product quality and avoid secondary pollution. With industry-leading filling precision, operational stability and automation level, the equipment can stably adapt to large-scale industrial production, helping enterprises improve production efficiency and reduce material loss and operating costs.

Deliver, shipping and serving

We support client business development via precise market prediction and profit analysis. We execute enterprise visit and inspection arrangements professionally. We equip clients with comprehensive theoretical and practical training resources. We conduct free on-site equipment installation and debugging, with overseas services governed by bilateral agreements. We ensure 48-hour on-site service accessibility. We deliver one-year full machine warranty and lifelong sustainable service. We sustain industry technical information and intelligence output. We cater to equipment update and improvement demands with dedicated follow-up services.

FAQ

Q1: What are the advantages of the core technologies used in the equipment?

A1: The core technologies offer significant advantages:

① High-precision filling valves ensure filling accuracy with an error margin ≤±1%, guaranteeing uniform product volume per pouch;

② An intelligent control system enables simple and convenient operation, allowing real-time monitoring of production parameters for timely adjustments and maintenance.

Q2: What are the differences between gable top carton and Tetra Pak?

A2: Gable top carton uses sheet-based packaging material. A single machine can fill multiple capacities, which are adjustable. Production speeds range from low to high, accommodating various types of contents.

Tetra Pak uses roll-based packaging material. A single machine can only fill one fixed capacity, which is non-adjustable. These machines lack low-output options, are expensive, and incur high maintenance costs.
