Product introduction
This portable semi-automatic gable-top filling system is custom-engineered for viscous liquid and cream hair care formulations such as shampoo, hair conditioner and scalp masks. It adopts human-machine collaborative operation: material feeding and finished product collection are done manually, while core working procedures including automatic filling, edge sealing and trimming are fully automated. Equipped with integrated pneumatic-electric control modules, the machine boasts compact layout and easy operation without complex parameter debugging. Balancing moderate hourly output and low upfront investment, it serves as an ideal packaging solution for medium & small batch customized daily chemical production. The equipment supports precision metering, sealing and cutting for diversified packaging formats including small sachets, plastic hoses and mini plastic bottles for hair care liquids.
product Parameter(specification)
The whole production line is controlled by PLC programs and requires 4 operators. All equipment components except the support frames are made of food-grade stainless steel with specially treated surfaces for an elegant appearance.
|
Filling Volume |
200–1000 ml (single machine compatible with full range) |
|
Output Capacity |
800–1200 cartons per hour |
|
Packaging Material |
Paper roof cartons or aluminum foil-lined roof cartons; Carton bottom dimensions (only one size can be selected): 95×95 mm, 70×70 mm, 57×57 mm |
|
Filling Temperature |
2–94 ℃ |
|
Shelf Life |
Subject to product category and production process |
|
Total Installed Power |
22 kW (3-phase industrial power supply) |
|
Overall Dimensions |
Carton Forming Machine: 1.3 × 0.9 × 1.50 m; Capping Machine: 0.8 × 0.6 × 1.2 m; Filling Machine: 2.0 × 0.9 × 2.6 m |
|
Compressed Air Requirement |
Flow rate: 0.8–1.0 m³/min; Pressure: 1.0–1.4 MPa; Oil-free & dust-free air |
|
Cooling Water Requirement |
Flow rate: ≥20 L/min; Temperature: Ambient temperature |
|
Net Weight |
1200 KG; Carton Forming Machine: 300 KG; Filling Machine: 800 KG; Capping Machine: 100 KG |
|
Installation Requirements |
Compatible with cement, tile and plastic flooring; foundation anchoring is not required. |
|
Exclusive Function |
Exclusive lifting filling function developed by our company to prevent liquid foaming and splashing during filling. |
product feature and application
Featuring space-saving layout and outstanding cost performance, the unit eliminates special ground foundation construction for installation, making it deployable in small and medium-sized daily chemical factories as well as pilot test laboratories. Compared with fully automatic packaging production lines, it effectively cuts down capital investment while retaining flexible production switching capacity. Widely applied in hair care manufacturing workshops, it can process all fluid and paste hair care formulas: smoothing shampoo, anti-dandruff shampoo, amino acid shampoo, hair conditioner, hair mask and scalp treatment essence.
product details
Carton Forming Machine
Production starts with raw gable-top carton sheets. Operators feed carton blanks and fold carton bottoms manually in advance. The machine carries out bottom heat treatment, integrated sealing and forming, outputting semi-finished gable boxes without top seals.
Capping Machine
Workers manually align matching caps and carton bodies. After manual positioning, ultrasonic welding technology firmly bonds caps to cartons, producing semi-finished boxes with caps mounted and open tops.

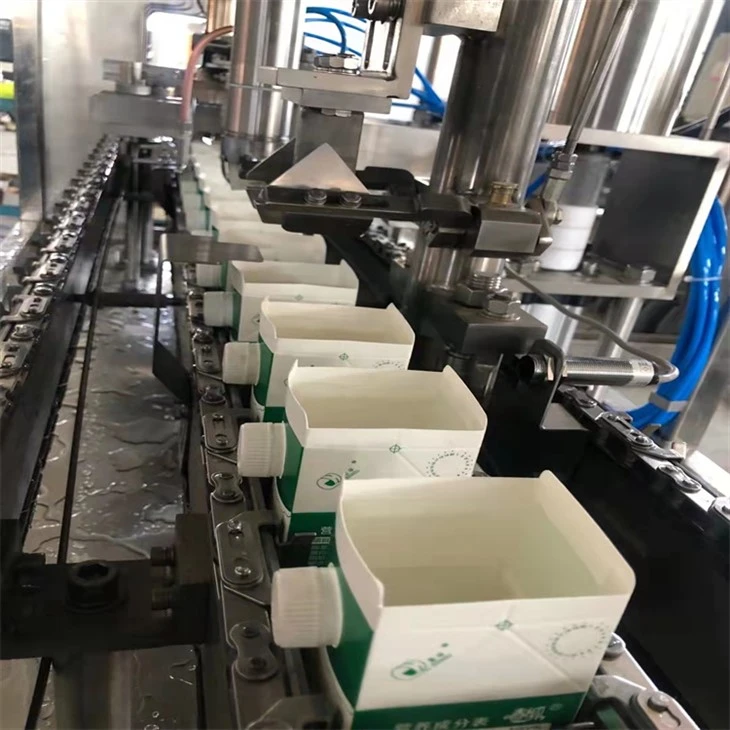

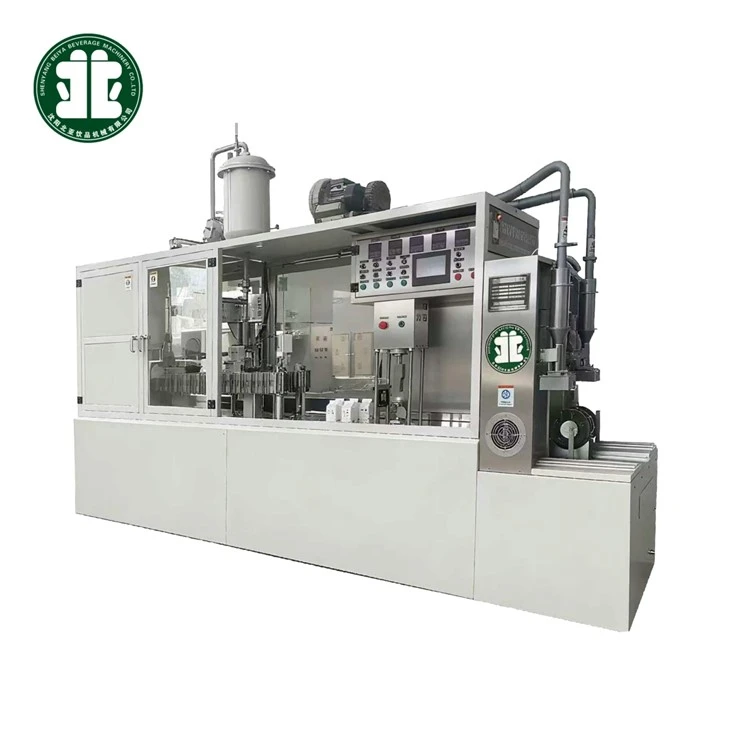

Filling Machine
Staff place empty cartons on the conveyor manually for automatic transmission. The machine autonomously finishes pre-folding top edges, quantitative liquid filling, top sealing & shaping and batch date printing, outputting qualified finished gable-top packaging. Among the three units, the filling machine runs fully automatically under computer program control; the carton former and capper adopt electric automatic control systems.
product qualification
This semi-automatic shampoo packaging machine has passed multiple industrial field tests and mass production verification from daily chemical manufacturers, delivering stable overall performance and precise filling with broad material adaptability. It strictly complies with hygiene standards for daily chemical production. Core metering and sealing assemblies have undergone thousands of durability cycle tests, with finished packaging yield exceeding 99%. As a cost-effective mainstream packaging device for hair care manufacturing, it has gained long-term recognition and repeated purchases from numerous daily chemical factories.
Deliver, shipping and serving
Support customers with market trend forecasting and profit evaluation to assist rational business decision-making.
Arrange factory tours and equipment inspection visits for cooperative enterprises as requested.
Provide systematic training covering theoretical expertise and hands-on operation skills for operators.
Free on-site installation guidance and equipment commissioning services are provided; overseas field debugging shall be implemented strictly per bilateral signed contracts.
Deliver on-site troubleshooting within 48 hours upon receiving customer service requests.
All complete machine sets enjoy a full 12-month warranty with permanent post-sales technical support.
Continuously sort and share industry technical documents and market intelligence with clients long-term.
Offer dedicated follow-up technical service for equipment iteration, performance upgrade and functional optimization.
FAQ
Q1: Does the equipment support customization?
A1: Customization services are available. We can tailor gable top carton filling machines to specific client requirements, including adapting filling processes for unique beverages, accommodating special packaging specifications, and integrating additional functional modules to deliver bespoke solutions.
Q2: What are the differences between gable top carton and Tetra Pak?
A2: Gable top carton uses sheet-based packaging material. A single machine can fill multiple capacities, which are adjustable. Production speeds range from low to high, accommodating various types of contents.
Tetra Pak uses roll-based packaging material. A single machine can only fill one fixed capacity, which is non-adjustable. These machines lack low-output options, are expensive, and incur high maintenance costs.
