Product introduction
This aseptic carton filling machine is customized for emulsified viscous materials such as skincare essence, body lotion, hair care liquid and cleaning fluid, integrating automatic carton forming, sterilization, precise quantitative filling, sealing and finished discharging. Optimized for emulsion's foaming, wall-sticking and layering features with fully closed aseptic production, it acts as core high-efficiency clean automatic packaging equipment for beauty and daily chemical manufacturers.
product Parameter(specification)
|
Body material |
High-rigidity steel load-bearing frame; all material-contact parts are food-grade stainless steel with professional surface treatment, compliant with food safety standards |
Rated power |
25KW, fit for industrial three-phase power supply |
|
Standard output |
3000 cartons/hour |
Compressed air |
Pressure 1.0–1.4Mpa, flow rate 1.4–2m³/min, oil-free & dust-free air source |
|
Carton base size |
57×57mm / 70×70mm / 83×83mm / 95×95mm,Single size only for each batch |
Cooling water |
Flow rate ≥40L/min, constant temperature 30℃ |
|
Matching filling volume |
57×57mm: 250–500ml; 70×70mm: 500–1000ml; 83×83mm: 1000–1500ml; 95×95mm: 1500–2000ml |
Dimension & weight |
size:4m×1.4m×2.8m, total weight 3500KG |
|
Capping specification |
Compatible with 26–36mm lids; dual capped/open modes, single mode per batch |
Installation |
Direct installation on cement, tile, plastic floors without special ground treatment |
|
Filling technology |
Room-temperature filling without heating, energy-efficient |
|
|
product feature and application
1.Servo stepless quantitative filling unit fits emulsions of different viscosity with tiny deviation, fast carton size and volume switching for short production changeover time.
2.Fully closed aseptic design avoids external impurity pollution, raising finished product yield, cutting material loss and production cost.
3.Full-process computer automatic control requires only one operator for full-line supervision, drastically reducing labor cost.
Application: Gable-top packaging of body lotion, moisturizer, whitening milk, skincare essence, household cleaning emulsion and other beauty & daily chemical emulsions.
product details

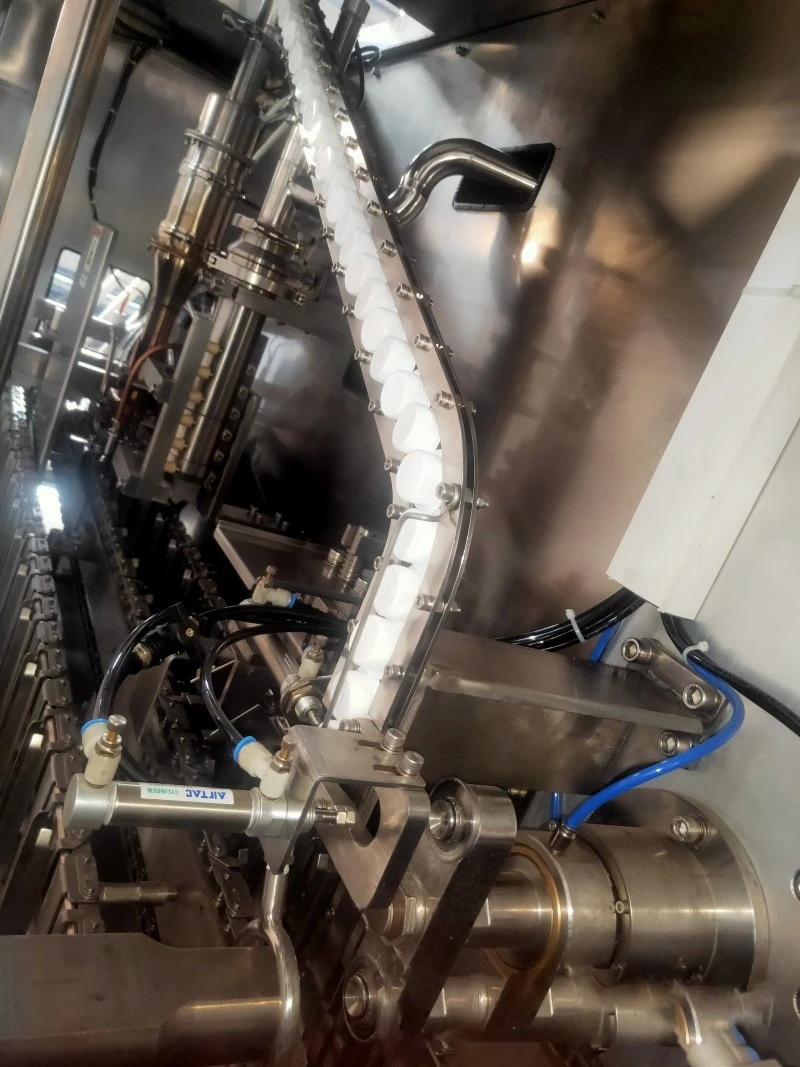

Complete forming and processing flow of roof boxes: raw paper sheet bottom pre-processing and shaping, bottom heating treatment and shaping, bottom sealing and forming, ultrasonic surface covering, top pre-forming, internal material filling, top sealing shaping, product production date printing, and final finished product packaging. The whole production process realizes computer-programmed intelligent automatic operation without multi-person operation and maintenance, and a single person can complete all production work on duty.
product qualification
Based on years of aseptic R&D for daily chemical emulsion filling, the machine is specially optimized for emulsion foaming and layering pain points. All core accessories are top industry brands with stable operation, precise measurement and qualified aseptic performance verified by multi-scenario mass tests, meeting daily chemical clean workshop standards and widely recognized by long-term clients.
Deliver, shipping and serving
Business decision support: Professional market research & in-depth profit model analysis
Standardized factory visit & workshop operation inspection arrangement
Full equipment skill training integrating theoretical teaching and hands-on operation
Free domestic on-site installation & commissioning; overseas service under bilateral agreements
24h service hotline, 48-hour remote & on-site rapid fault solving
1-year machine warranty with free replacement & repair for non-artificial damaged parts
Long-term stable supply of all wearing parts to guarantee continuous line operation
Long-term customized follow-up for equipment iteration and performance optimization
FAQ
Q: What after-sales services does your company provide after purchasing the equipment?
A: We provide comprehensive after-sales service guarantees:
①Free on-site installation and commissioning (for domestic customers). For international customers requiring on-site installation, the buyer shall cover round-trip airfare, accommodation, visa fees for our technicians, plus a daily service fee of $150 USD.
②Professional operator training to ensure staff master equipment operation and basic maintenance.
③One-year equipment warranty covering free replacement of non-human-damaged parts and complimentary repairs;
④24/7 service hotline for prompt maintenance requests, with on-site technicians arriving within 24 hours for nearby areas and 48 hours for remote regions;
⑤Long-term supply of wear-and-tear parts to ensure sustained equipment stability.
