Product introduction

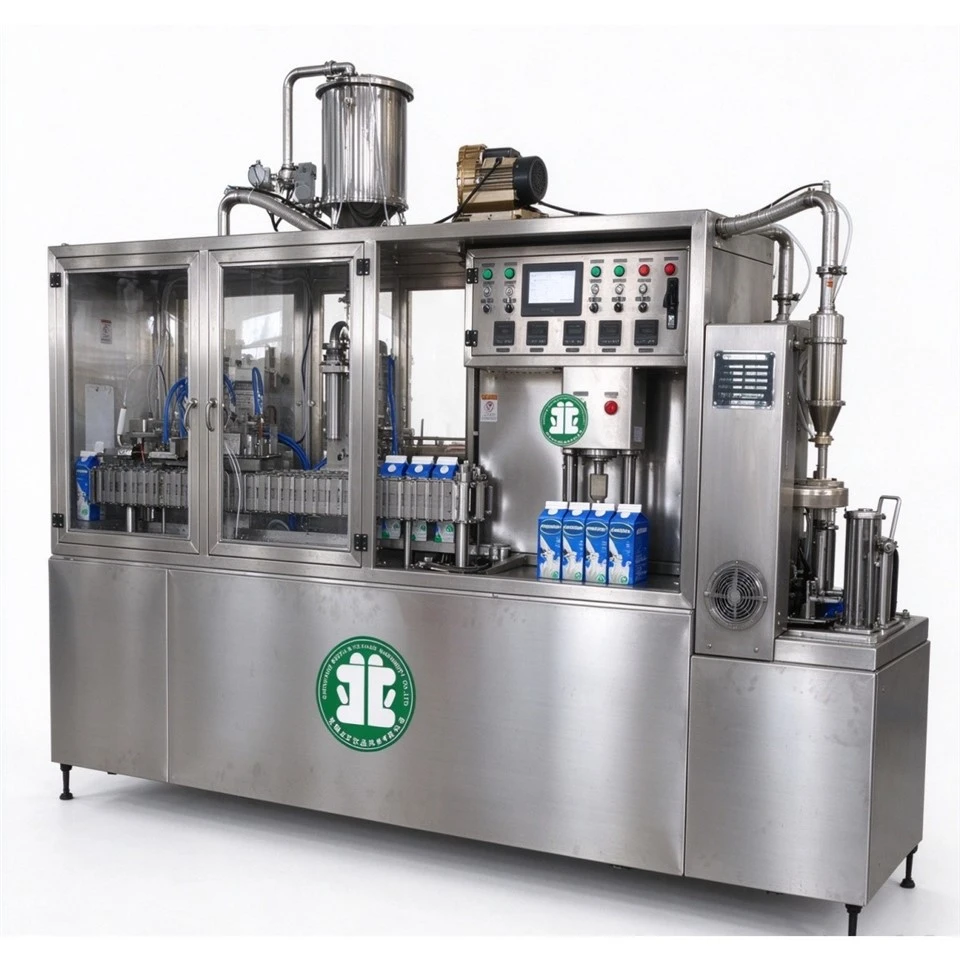

Hot fill packaging machine is specially designed for hot filling and packaging of heat-resistant beverages. It integrates temperature-controlled filling and sealing to extend product shelf life without aseptic system.
Product Parameter (specification)
- Production capacity: 500–6000 containers/hour. Custom hot fill packaging solution available for your product and container type.
- Container type: bottle, carton, jar etc.;
- Filling principle: gravity / piston filling optional;
- Filling accuracy: ±1%–±1.5%;
- Material contact parts: 304/316L stainless steel;
- Power supply: 220V/380V optional;
- Air source: 0.4–0.6Mpa;
- Control system: PLC + HMI;
- Cleaning: manual cleaning, CIP optional.
Product feature and application
Features:
Built-in temperature control system, anti-drip filling nozzle, stable sealing, simple maintenance, suitable for hot fill process.
Application:
Fruit juice, tea drinks, energy drinks and other heat-resistant liquid beverages.
Product details

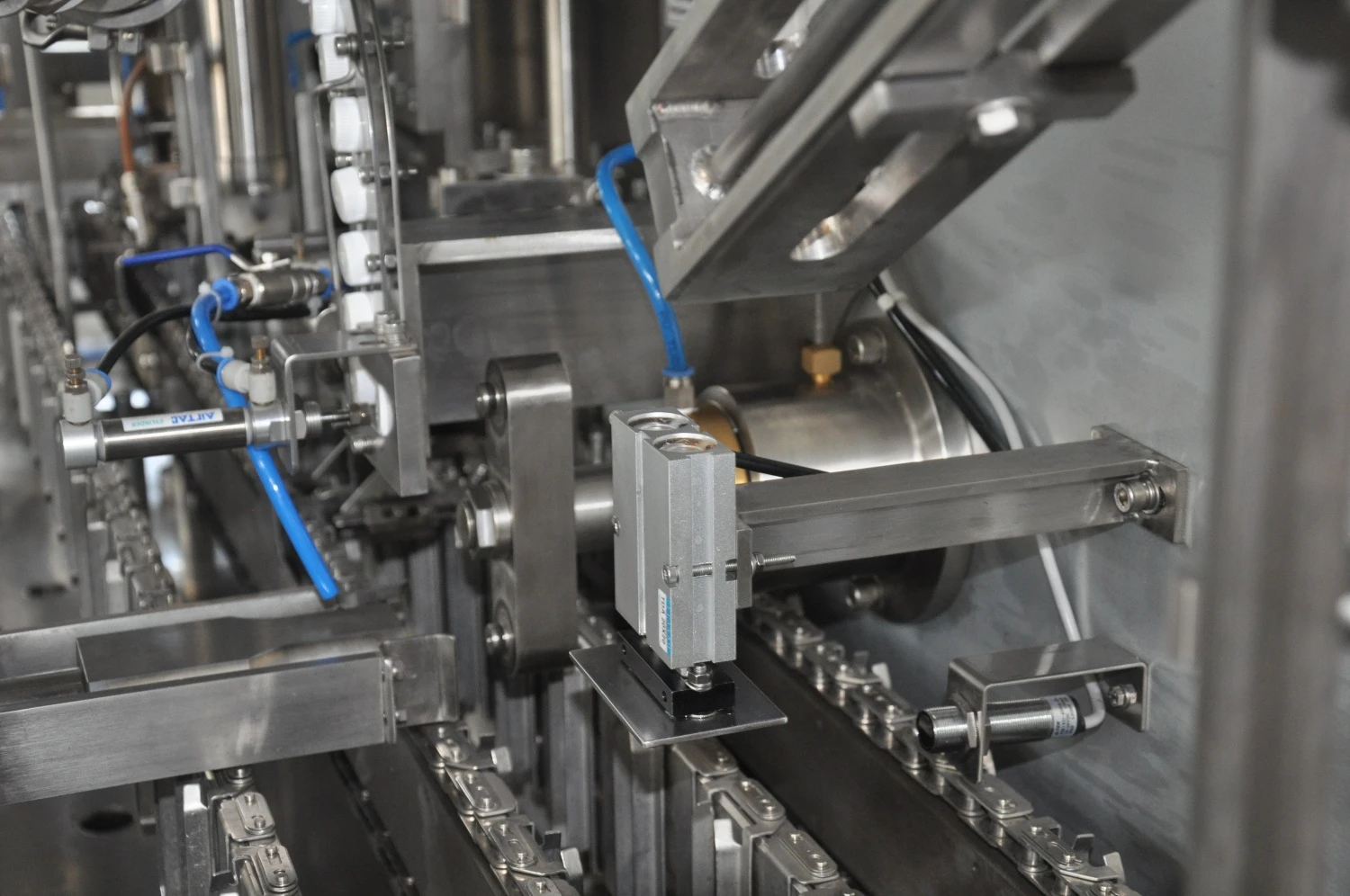

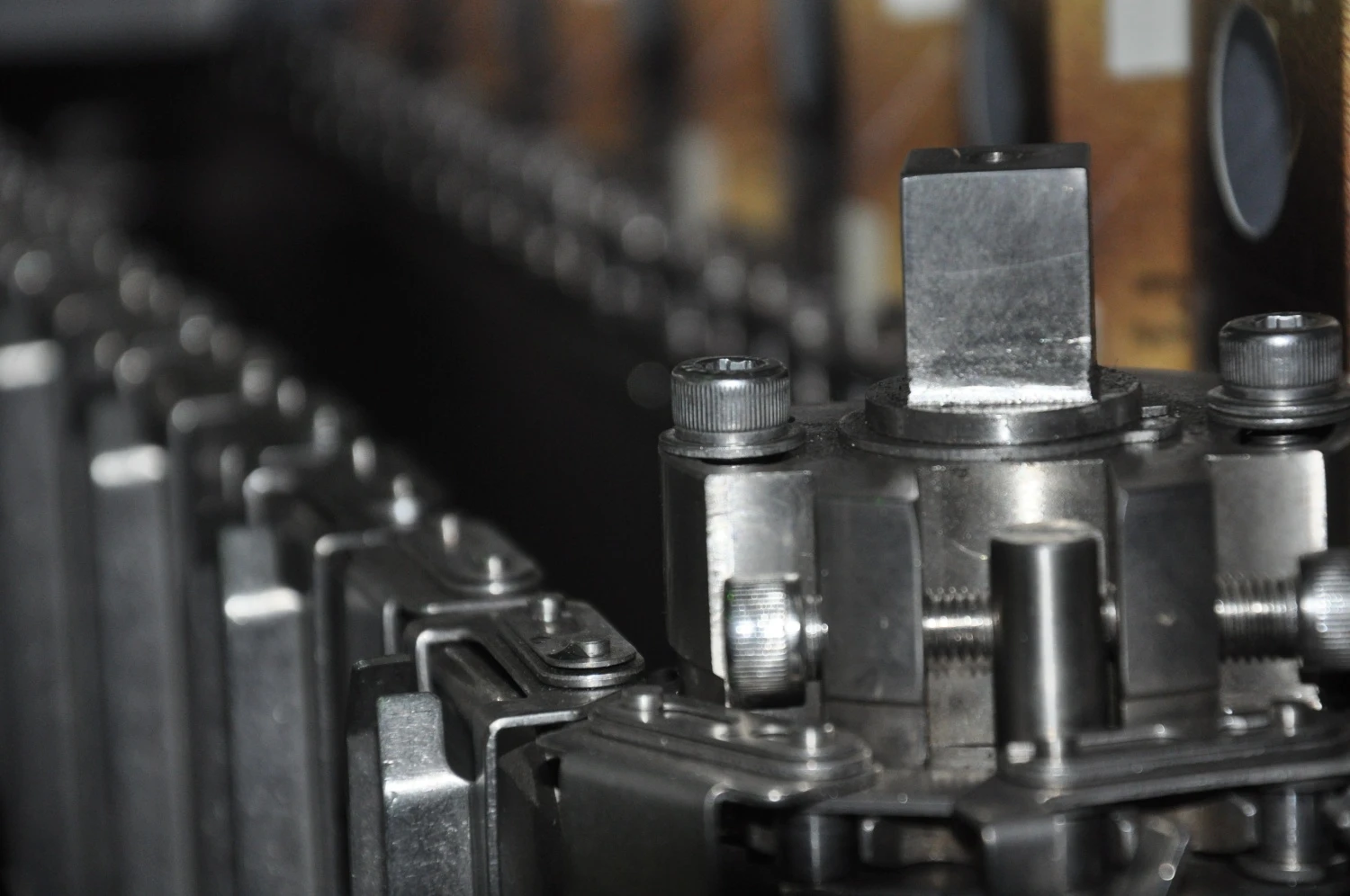

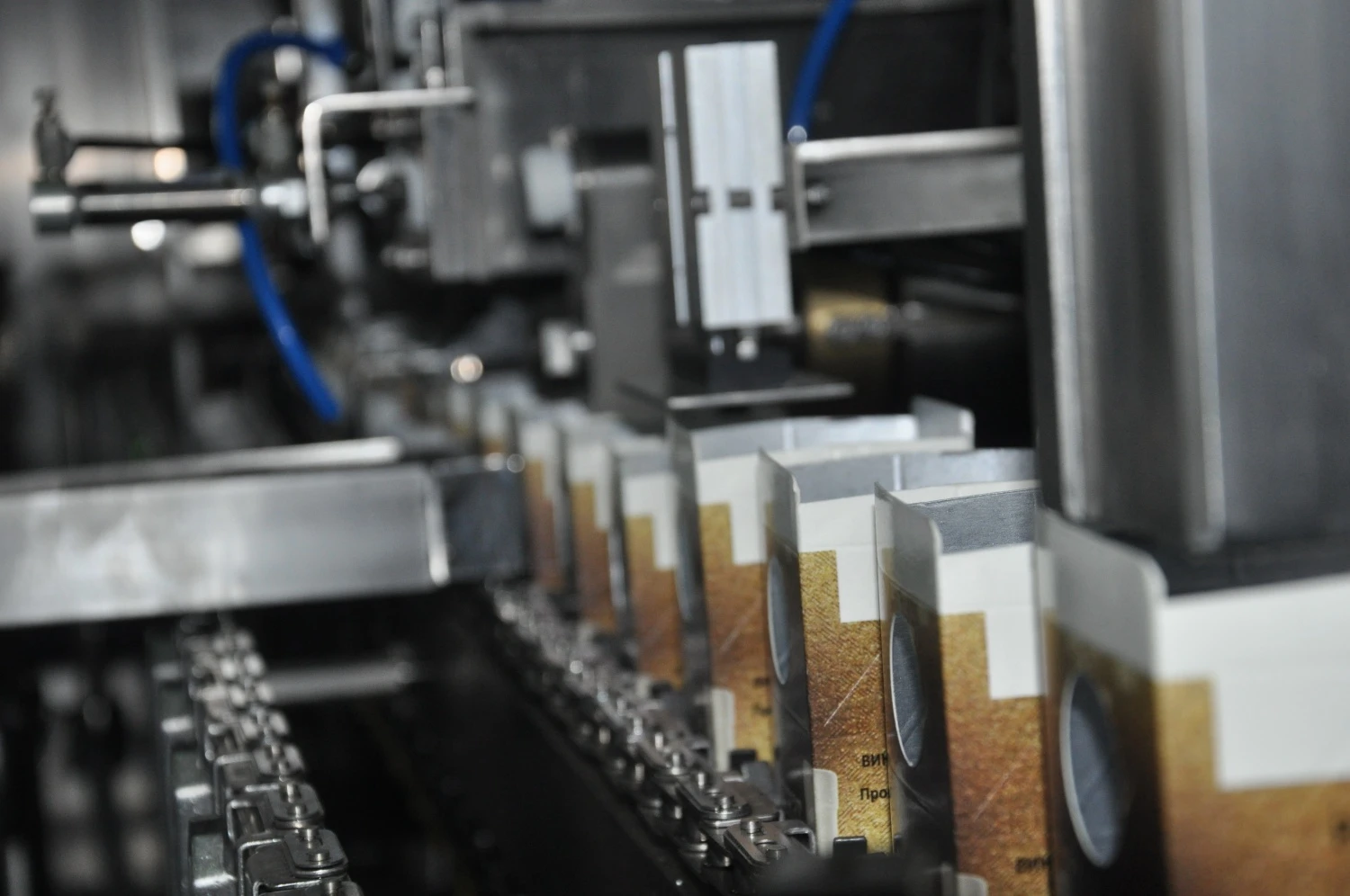

Hot temperature control unit, filling metering unit, anti-drip nozzle, container positioning fixture, sealing unit, stainless steel machine frame.
Product qualification
Food machinery certification, CE optional, food contact material test report.
Deliver, shipping and serving
Lead time:15–25 working days. Export fumigated wooden case. Provide operation manual, operation video and online technical guidance.
FAQ
Q: What temperature can it support for hot filling?
A: Normally support 85~95℃ hot filling temperature, adjustable according to your beverage formula.
Q: Can it match different bottles and cartons?
A: Yes, we can change fixtures and moulds to adapt different containers.
