Product introduction

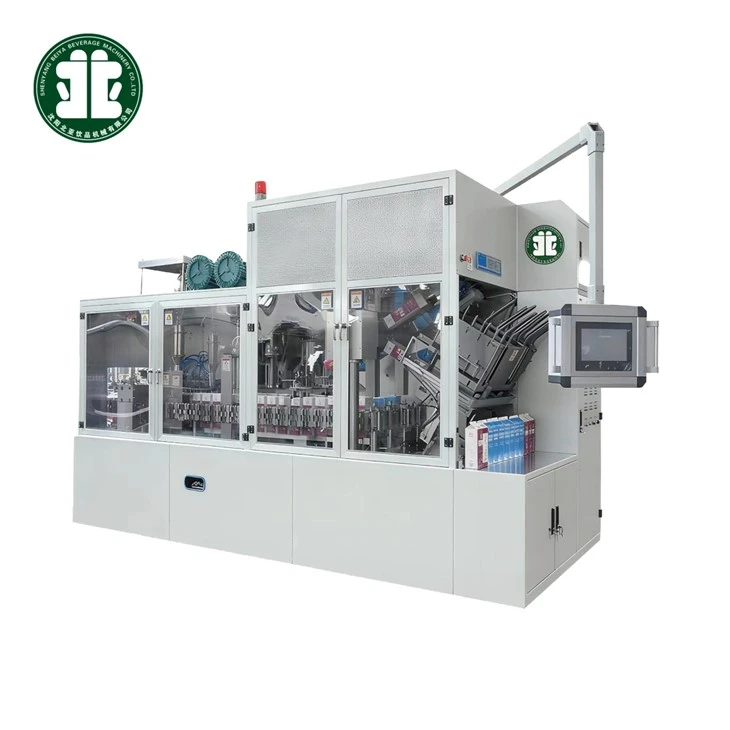

Roof Box Oil Liquid Filling Machine is an integrated filling equipment specially developed for edible oil and liquid seasoning oil, compatible with oxygen-barrier roof-shaped paper cartons. The machine can automatically complete the whole processes including carton forming, cap sealing, quantitative oil filling, top sealing and date coding, equipped with anti-drip filling valves and dual-speed filling to effectively prevent oil foaming and overflow with high metering accuracy.
product Parameter(specification)
|
Parameter Item |
Specific Parameter Details |
|
Equipment Main Material |
Except high-rigidity supports, all parts are food-grade stainless steel with special surface treatment |
|
Packaging Box Specification |
Optional box bottom sizes: 57×57mm, 70×70mm, 83×83mm, 95×95mm (single specification only for operation, no mixed compatibility) |
|
Hourly Output |
3000 boxes per hour |
|
Graded Filling Capacity |
57×57mm: 250-500ml; 70×70mm: 500-1000ml; 83×83mm: 1000-1500ml; 95×95mm: 1500-2000ml |
|
Lid Operation Mode |
Dual modes of capping/non-capping, applicable lid size 26-36mm, single mode operation at one time |
|
Filling Temperature |
Room temperature filling |
|
Total Equipment Power |
25KW (three-phase power supply) |
|
Product Shelf Life |
Depends on product type and production process, no fixed value |
|
Compressed Air Requirements |
Pressure 1.0-1.4Mpa, flow rate 1.4-2m³/min, oil-free and dust-free air source |
|
Cooling Water Working Condition |
Flow rate ≥40L/min, water temperature 30℃ |
|
Equipment Overall Dimension |
Length 4m × Width 1.4m × Height 2.8m |
|
Total Equipment Weight |
3500KG |
|
Installation Site Requirements |
Suitable for cement, tile and plastic floors, no corner plastering required |
|
Equipment Core Function |
Exclusive filling enhancement technology to prevent liquid foaming and splashing during filling |
product feature and application
This gable-top liquid oil filling machine is specially customized for edible oil and liquid seasoning oil. All material contact parts are made of 304 food-grade stainless steel, which is corrosion-resistant, easy to clean, free of sanitary dead corners, and compliant with food safety production standards. The machine is widely used for gable-top carton filling of various liquid oils, including peanut oil, soybean oil, rapeseed oil, corn oil, olive oil, sesame oil, prickly ash oil, chili oil and other edible vegetable oils and seasoning oils.
product details

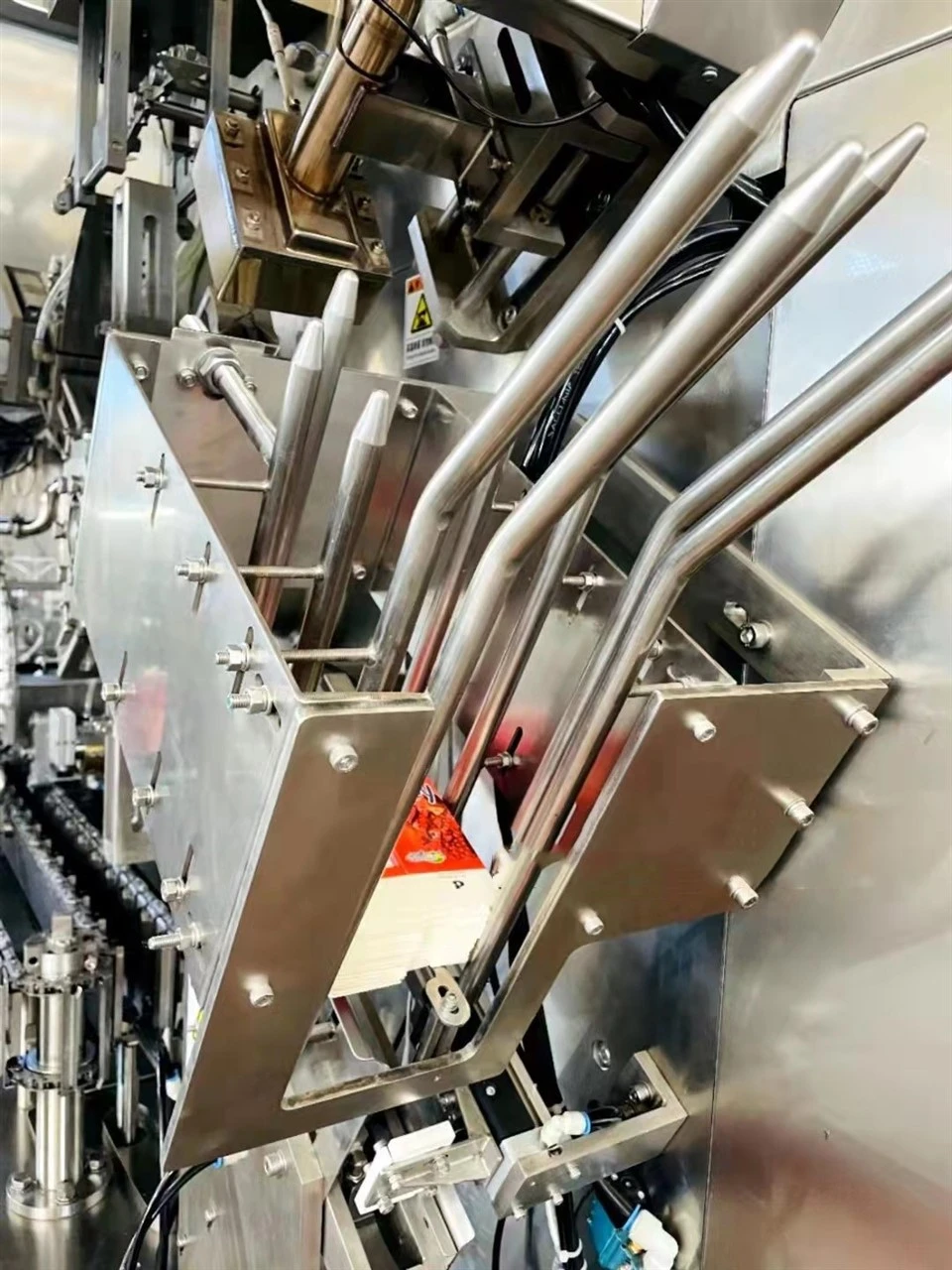

The processing flow of roof box sheets includes eight core procedures: bottom pre-forming, bottom heating shaping, bottom sealing forming, ultrasonic film covering and fitting, top pre-forming, material filling and filling, top sealing shaping and date printing, and finished product packaging is carried out after completion. All production links are automatically controlled by the computer system throughout the whole process, no multi-person operation is required, and only one staff member is equipped to meet production needs.
product qualification
The whole machine complies strictly with safety specifications for food machinery. All equipment has passed ISO9001 Quality Management System Certification and EU CE Safety Certification. All water-contact parts are made of 304 food-grade stainless steel, meeting national hygienic standards for food production equipment. The aseptic filling system has been verified by third-party testing institutions; indicators including sterile environment, sealing pass rate and filling accuracy all meet standards. Complete test reports and factory inspection records are available, and full qualification documents can be provided for customer factory audits.
Deliver, shipping and serving
We dedicate to providing one-stop supporting services for clients, including accurate market forecasting and professional profit analysis. Meanwhile, we will organize targeted visits and inspection activities for relevant enterprises. To help clients master professional skills, we provide systematic training that combines complete theoretical knowledge and practical operation experience. In terms of equipment services, we offer free on-site debugging and installation guidance, while overseas on-site debugging work will be implemented strictly in accordance with the consensus reached by both parties. We have built a 48-hour rapid on-site service system, and all our equipment is equipped with a one-year full machine warranty and lifelong exclusive service. In addition, we will continuously deliver industry technical information and business intelligence, and provide long-term follow-up services for equipment update and technical improvement.
FAQ
Q1: In one machine can fill for different volume?
A1:The equipment supports multiple gable-top packaging specifications, accommodating filling capacities of 200ml, 330ml, 380ml, 500ml, 750ml, 1000ml, and 2000ml. Note that each machine supports only one box base size, but the box height is flexibly adjustable. By adjusting the height, it can fill beverages of different capacities, achieving multi-capacity compatibility. Additionally, the equipment supports composite packaging materials made from different materials (e.g., paper-aluminum-plastic composite, plastic-plastic composite, etc.), and can be customized and debugged to match the packaging requirements of the customer's products.
It is also compatible with packaging materials and lids from various global manufacturers, ensuring complete compatibility.
Q2:How should equipment undergo routine maintenance?
A2: Daily equipment maintenance is relatively low in difficulty and simple to operate. Key daily maintenance points:
①After each production run, promptly clean filling valves, material pipelines, and other components in contact with materials to prevent bacterial growth from residue;
②Regularly inspect transmission components (e.g., chains, gears) and add lubricant as needed to ensure smooth operation;
③Periodically check seal wear and replace immediately if leaks or damage are detected;
④Maintain clean equipment surfaces to prevent dust and debris accumulation;
⑤Strictly follow the equipment operation manual to prevent damage from improper use.
