Product introduction

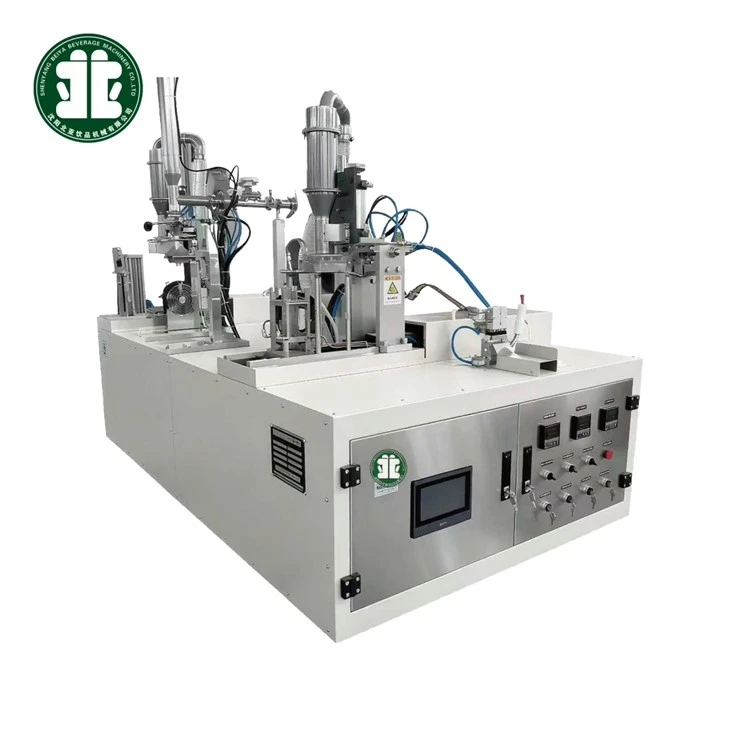

The semi-automatic all-in-one gable top carton filling machine integrates multiple core processing functions including carton shaping, quantitative liquid filling, cap pressing, top heat sealing and production date printing in one compact device. Unlike traditional split-type equipment that requires multiple standalone machines to complete the whole process, this model adopts manual carton feeding and picking, while the filling and sealing procedures are fully automated. As a mini liquid carton packaging device with low investment cost and small space occupation, it is perfectly suitable for small processing factories, individual workshops and product trial production scenarios with low output demands.
product Parameter(specification)
|
Capacity |
500 - 1000 ml |
Dimensions |
Length * Width * Height: 1.6 * 1.2 * 1.8 meters |
|
Production |
500 boxes per hour (based on 500ml) |
Compressed air |
Flow rate ≥0.8 M³/min, Pressure: 0.8 - 1.0 MPa, Oil-free, Dust-free |
|
Material |
Roof cardboard box or roof aluminum foil box |
Cooling water |
Flow rate: ≥20 L/min, Temperature: Room temperature |
|
Filling temperature |
2-88℃ |
Net weight |
500KG |
|
Shelf life |
Dependent on product type and manufacturing process |
Installation requirements |
Cement, floor tiles, or plastic flooring are all acceptable. No corner plastering is required |
|
Total machine power |
15KW (three-phase power supply) |
product feature and application
Adopting an integrated and compact structural design, this equipment effectively upgrades and replaces conventional split packaging units. It greatly saves factory floor space and supports flexible placement and mobile adjustment according to production needs. The operation process is simple and user-friendly, requiring no professional operational skills. New staff can get started quickly, helping enterprises realize labor-saving and lightweight production modes. This equipment is applicable to the gable top packaging of various flowable liquid food and drinks, covering fresh milk, yoghurt, soymilk, plant beverages, fruit juice, vegetable juice, tea drinks, grain-based beverages, liquid egg liquid, light cream, cooking wine, rice vinegar, liquid seasonings and low-alcohol beverages.
Product details
Equipment Operation Flow: The complete carton production is divided into six independent processing stages. A total of 4 to 5 on-site workers are required for coordinated assembly line operation.
Bottom Forming & Sealing
Taking purchased industrial carton sheets as raw materials, the production line adopts manual feeding mode, shapes the carton bottom structure, and finishes sealing to form open-mouth carton semi-products.
Ultrasonic Lid Bonding
For preliminarily molded open-top cartons, workers accurately align and place supporting lids. Non-contact ultrasonic welding is used to fix lids tightly on the carton openings.
Top Creasing & Pre-Folding
Mechanical creasing and pre-folding are carried out on the carton top openings to eliminate unsmooth edges and prepare for integral sealing.
Station Positioning & Filling
Operators position the pre-folded cartons on the filling station. The equipment implements precise filling to ensure consistent product loading volume.
Gable Top Sealing
After material filling, the carton tops are fully sealed and shaped into standard gable-top carton finished blanks.
Date Coding Processing
Surface date marking is performed on shaped cartons. After inspection, qualified finished gable-top carton products are completed.
product qualification
The equipment has passed the full-type test conducted by the national metrology authority and obtained the ISO certificate. Appraised by expert groups, its functional configuration and technical quality have fully reached the international advanced level. At present, more than 100 sets of Beiya gable-top carton packaging machines are serving food manufacturers at home and abroad, winning wide recognition and favorable reviews from industry experts and enterprise clients.
Deliver, shipping and serving
Assist clients in conducting market trend prediction and benefit assessment to support their business layout.
Arrange field visits and factory inspection activities for cooperative enterprises as required.
Offer systematic professional training covering both theoretical knowledge and practical operation skills.
Supply free on-site equipment commissioning and installation guidance; overseas on-site service contents shall be implemented subject to bilateral signed contracts.
Provide rapid on-site response service within 48 hours after receiving customer demands.
All equipment is equipped with a full one-year warranty period and permanent follow-up technical support.
Keep customers updated with the latest industry technical materials and market information on a long-term basis.
Provide professional follow-up technical services for equipment iteration, upgrading and performance optimization.
FAQ
Q1: What products is your gable top carton filling machine primarily suitable for?
A1: Our gable top carton filling machines have a wide range of applications, suitable for filling beverages such as milk, juice, water, cream, egg liquid, red wine, rice wine, whiskey, and more. The equipment accommodates beverages of varying viscosities and meets filling requirements for products stored under different conditions, including ambient and low temperatures. Additionally, it can handle special products like powders, granules, and pet food.
Q2: What are the production capacities of the gusseted pouch filling machines? Is the speed adjustable?
A2: Our gable top carton filling machines come in multiple models with production capacities ranging from 500 to 6000 cartons per hour. Equipment can be customized based on clients' production requirements and filling contents. Additionally, the machines support one-touch switching of filling volumes. Within the capacity range of the selected model, filling speed can be flexibly adjusted to accommodate different production rhythms.
