Product introduction

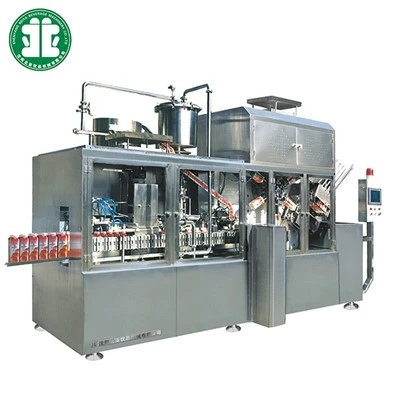

Also known as gable-top beverage filling machine, this integrated fluid packaging line combines carton forming, bottom sealing, high-precision filling, top sealing, batch coding and finished discharging modules. Suitable for automatic continuous production of liquid beverages in standard gable-top cartons, it features easy operation and neat package forming, serving as core supporting equipment for small, medium and large beverage factories.
product Parameter(specification)
|
Body material |
High-rigidity steel load-bearing frame; all material-contact parts are food-grade stainless steel with professional surface treatment, compliant with food safety standards |
Rated power |
25KW, fit for industrial three-phase power supply |
|
Standard output |
3000 cartons/hour |
Compressed air |
Pressure 1.0–1.4Mpa, flow rate 1.4–2m³/min, oil-free & dust-free air source |
|
Carton base size |
57×57mm / 70×70mm / 83×83mm / 95×95mm, Single size only for each batch |
Cooling water |
Flow rate ≥40L/min, constant temperature 30℃ |
|
Matching filling volume |
57×57mm: 250–500ml; 70×70mm: 500–1000ml; 83×83mm: 1000–1500ml; 95×95mm: 1500–2000ml |
Dimension & weight |
size:4m×1.4m×2.8m, total weight 3500KG |
|
Capping specification |
Compatible with 26–36mm lids; dual capped/open modes, single mode per batch |
Installation |
Direct installation on cement, tile, plastic floors without special ground treatment |
|
Filling technology |
Room-temperature filling without heating, energy-efficient |
|
|
product feature and application
1.Low energy consumption with stepless adjustable filling speed to fit different output demands; compact footprint for small & medium workshops with outstanding overall cost performance.
2.Closed automatic workflow only needs one on-duty staff to cut factory labor expenditure and raise overall production profit.
Application: Mass standardized gable-top packaging of milk, juice, drinking water, fruit vinegar, fermented drinks and other liquid food.

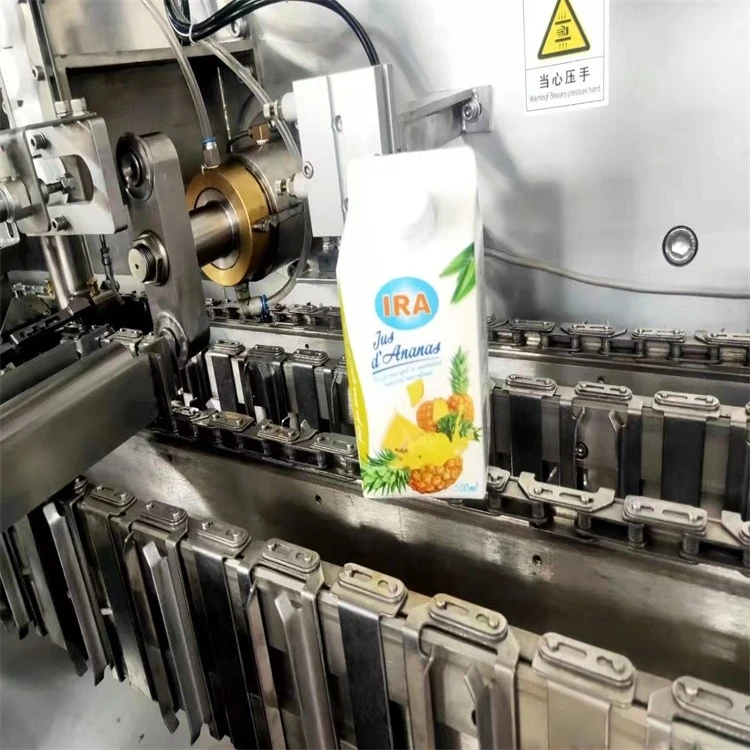

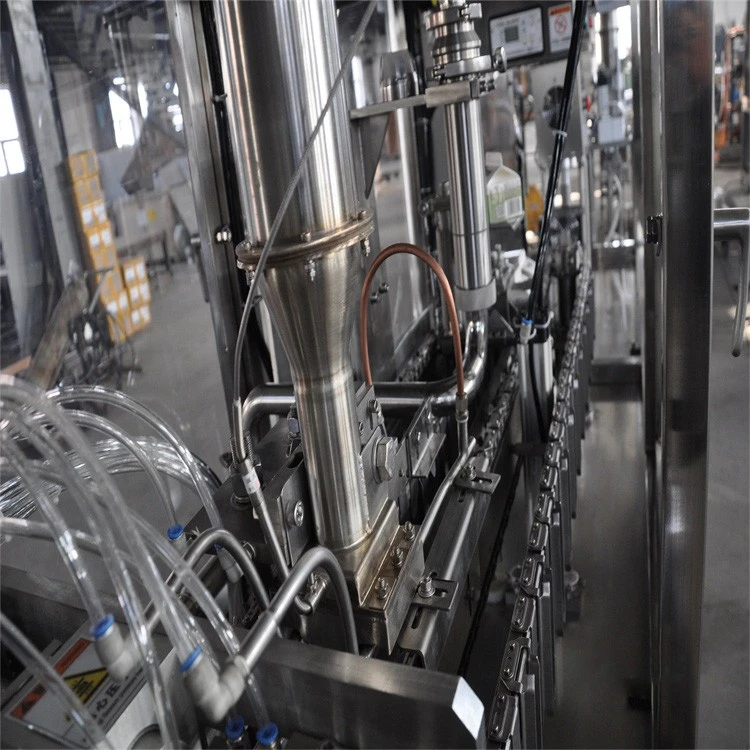

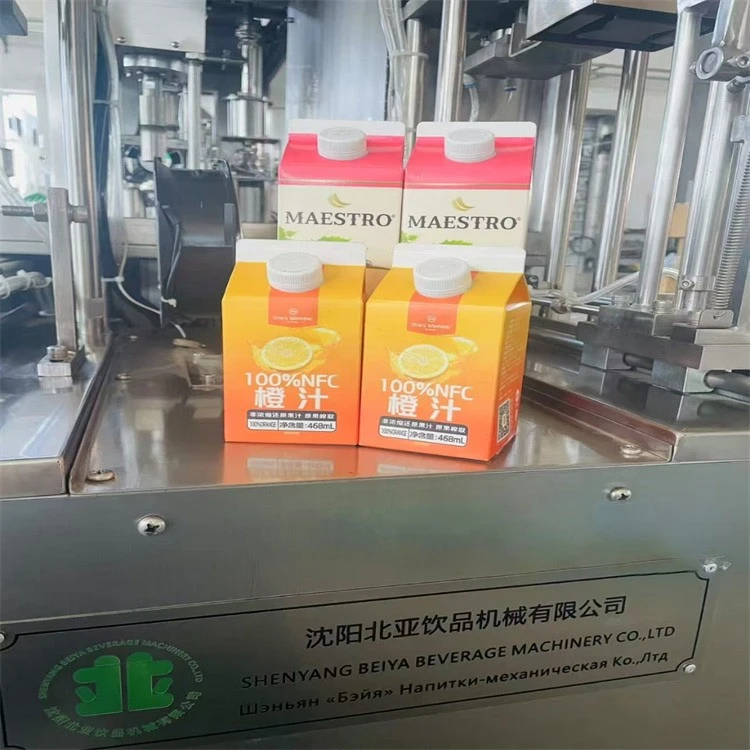

product details
- Bottom pre-forming of carton sheets
- Bottom heating reinforcement shaping
- Bottom sealing forming
- Ultrasonic film lamination
- Top pre-forming
- Quantitative beverage filling
- Top sealing shaping
- Date coding printing
- Finished sorting & warehousing
product qualification
The machine complies strictly with domestic food machinery safety standards, adopting full food-grade contact materials and closed-loop aseptic cleaning tech. Finished packages are leak-free without secondary pollution, fully meeting supermarket circulation and export food testing standards for overseas beverage lines.
Deliver, shipping and serving
Market Research Project: Provide customized market forecasting and profit analysis services for corporate clients.
Enterprise Inspection Project: Arrange special field visits and routine inspections for relevant industrial enterprises.
Skill Training Project: Launch comprehensive training programs covering theoretical knowledge and practical operation skills.
On-site Commissioning Project: Offer free equipment installation and debugging guidance, with overseas projects implemented per bilateral agreements.
Rapid Response Project: Realize 48-hour on-site service rapid response and problem solving.
Quality Guarantee Project: Provide one-year full machine warranty and lifelong after-sales service.
Intelligence Update Project: Continuously push industry technical materials and market intelligence resources.
Equipment Upgrade Project: Supply full-process follow-up services for equipment update and technical improvement.
FAQ
Q1: In one machine can fill for different volume?
A1:The equipment supports multiple gable-top packaging specifications, accommodating filling capacities of 200ml, 330ml, 380ml, 500ml, 750ml, 1000ml, and 2000ml. Note that each machine supports only one box base size, but the box height is flexibly adjustable. By adjusting the height, it can fill beverages of different capacities, achieving multi-capacity compatibility. Additionally, the equipment supports composite packaging materials made from different materials (e.g., paper-aluminum-plastic composite, plastic-plastic composite, etc.), and can be customized and debugged to match the packaging requirements of the customer's products.
It is also compatible with packaging materials and lids from various global manufacturers, ensuring complete compatibility.
Q2: What preliminary preparations are required for equipment installation?
A2: The following conditions must be prepared for equipment installation:
①Site Requirements: Provide a level, dry, and well-ventilated site. The required area depends on the equipment model, typically requiring 30-100㎡ (including space for operation and maintenance).
②Installation Requirements: Water, electricity, and compressed air connections are required for operation. Customers must provide their own air compressor.
