Product introduction

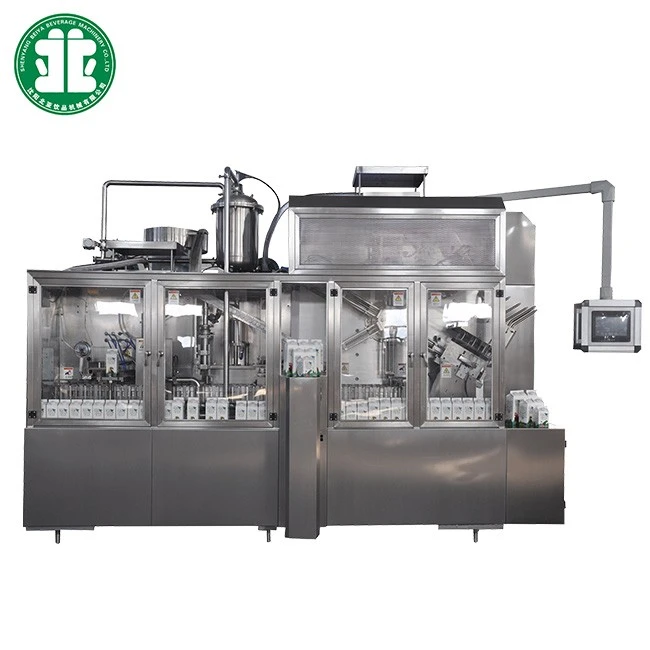

Full-automatic filling unit developed for edible oil in aluminum plastic composite gable-top cartons, integrating carton forming, bottom sealing, quantitative oil filling, ultrasonic capping, top sealing and batch coding automatic modules with PLC touch control. Standard output reaches 3000 cartons/hour, customizable up to 6000 cartons, fit for edible oil cartons from 250ml to 2000ml.
product Parameter(specification)
1)Material & Exclusive Tech
Self-developed oil exclusive filling enhancement system with back-suction anti-drip nozzle; high-strength carbon steel support frame, all oil-contact components are 316L food stainless steel with professional passivation, fully compliant with grain & oil safety standards.
2)Output & Carton Matching
Standard output 3000 cartons/hour, customized max 6000 cartons/hour; Optional base sizes: 57×57 /70×70 /83×83 /95×95mm, single size per batch; Matching volume: 250–500ml /500–1000ml /1000–1500ml /1500–2000ml.
3)Working Condition Parameters
Fit for 26–36mm caps, capped/open two modes choose one per batch; Ambient filling without heating equipment; rated power 25KW, three-phase power; Compressed air 1.0–1.4Mpa, flow 1.4–2m³/min, oil & dust free; Cooling water flow ≥40L/min, constant 30℃; Machine size 4m×1.4m×2.8m, weight 3500KG; Direct installation on cement, tile, plastic floor without plastering; Shelf life depends on oil refining and storage conditions, no fixed value.
product feature and application
Fully enclosed protective cabinet, automatic filling stop protection for missing cartons; full servo drive for stable low-noise operation, only one operator per shift to greatly cut labor cost.
Target customers: Medium & small grain and oil processing plants, supermarket self-owned edible oil brands, seasoning manufacturers, gift-pack grease producers
product details

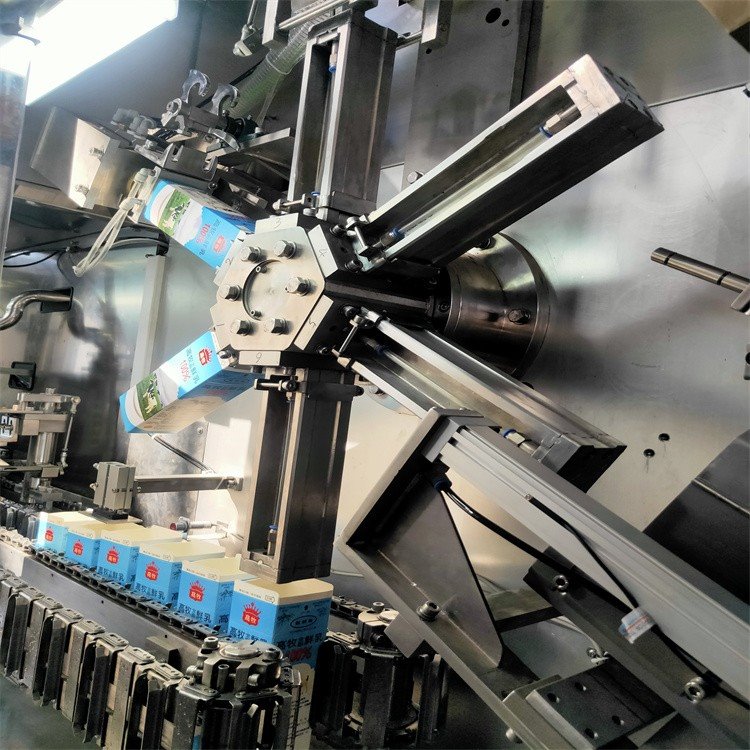

- Bottom pre-processing of gable-top sheets
- Bottom thermal curing forming
- Bottom sealing & closing
- Ultrasonic film lamination
- Top pre-forming

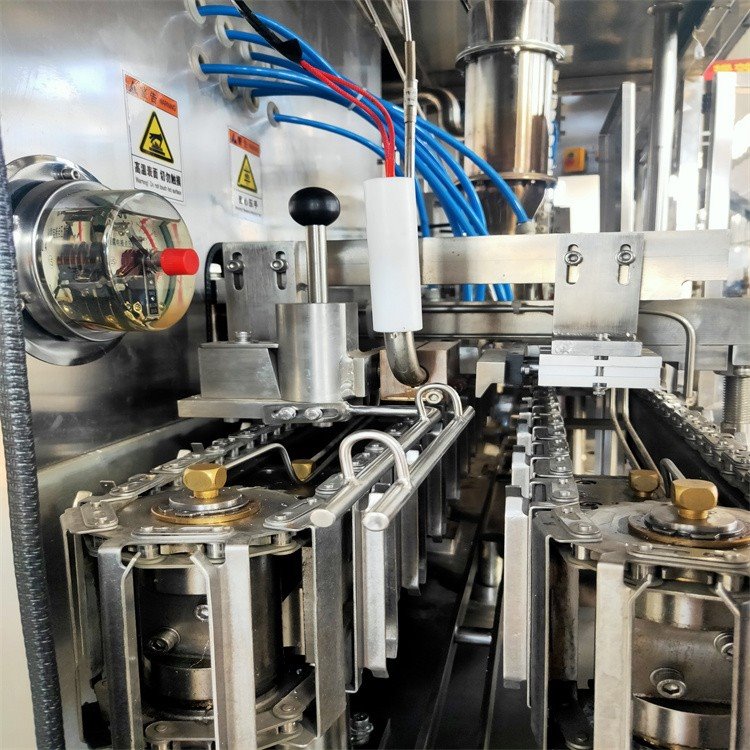

- Quantitative edible oil filling
- Top sealing shaping
- Intelligent batch coding printing
- Finished discharging & unified packaging
product qualification
The machine holds both ISO certificate and CE certification; carton size, output and capping structure are customizable. Engineers provide on-site commissioning, zero-basis operators can work independently within half a day.
Deliver, shipping and serving
|
Profit data analysis |
Supply grain & oil market trend and profit calculation |
|
Factory field visit |
Arrange factory tour & standardized workshop inspection |
|
Theory & practical training |
Cover full machine operation & basic troubleshooting |
|
Installation & commissioning |
Free domestic on-site service; overseas per bilateral contracts |
|
Emergency repair |
Technicians arrive within 48h to solve line shutdown |
|
Machine warranty |
1-year full warranty, free replacement of non-artificial damaged parts |
|
Industry document update |
Continuous update of new grain & oil tech and market info |
|
Equipment upgrade follow-up |
Long-term tracking of technical transformation & performance upgrade |
FAQ
Q1: What preliminary preparations are required for equipment installation?
A1: The following conditions must be prepared for equipment installation:
①Site Requirements: Provide a level, dry, and well-ventilated site. The required area depends on the equipment model, typically requiring 30-100㎡ (including space for operation and maintenance).
②Installation Requirements: Water, electricity, and compressed air connections are required for operation. Customers must provide their own air compressor.
Q2: What are the advantages of the core technologies used in the equipment?
A2: The core technologies offer significant advantages:
① High-precision filling valves ensure filling accuracy with an error margin ≤±1%, guaranteeing uniform product volume per pouch;
② An intelligent control system enables simple and convenient operation, allowing real-time monitoring of production parameters for timely adjustments and maintenance.
