Product introduction

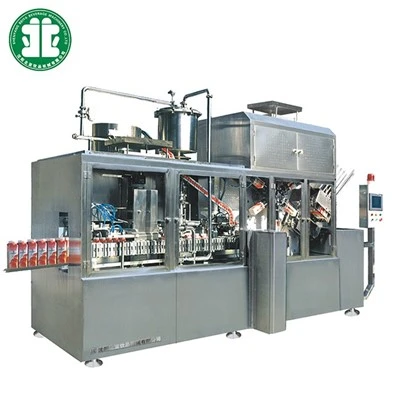

The liquid egg carton filling machine is a fully automatic aseptic filling equipment specially developed for liquid egg products. It is compatible with various paper packaging containers such as gable-top cartons and square cartons, and can complete the whole-process automatic operations including automatic carton feeding, carton cleaning, aseptic filling, sealing and finished product output. Optimized for the special characteristics of liquid egg such as perishability, foaming tendency and unique viscosity, the equipment is equipped with a clean filling system and precise metering module. It is widely used in the standardized mass production of liquid eggs in food processing enterprises, serving as the core equipment for standardized, hygienic and intelligent packaging of liquid egg products.
product Parameter(specification)
|
1. Equipment Material |
All parts except high-rigidity supports are food-grade stainless steel with special surface treatment for safety compliance; |
|
2. Packaging Specifications |
Compatible with four box bottom sizes of 57×57mm, 70×70mm, 83×83mm and 95×95mm, only one specification for single operation; |
|
3. Production Capacity |
Output reaches 3000 boxes per hour; |
|
4. Filling Volume |
250-500ml (57×57mm), 500-1000ml (70×70mm), 1000-1500ml (83×83mm), 1500-2000ml (95×95mm); |
|
5. Lid Mode |
Integrated capping/non-capping functions, applicable lid size 26-36mm, single mode selection only; |
|
6. Filling Condition |
Full room-temperature filling; |
|
7. Equipment Power |
Rated total power 25KW, three-phase power supply; |
|
8. Shelf Life |
Determined by product category and production process; |
|
9. Compressed Air |
Working pressure 1.0-1.4Mpa, flow rate 1.4-2m³/min, oil-free and dust-free air source; |
|
10. Cooling Water |
Water flow ≥40L/min, constant water temperature 30℃; |
|
11. Equipment Dimension |
4m×1.4m×2.8m (L×W×H); |
|
12. Equipment Weight |
Net weight 3500KG; |
|
13. Installation Condition |
Suitable for cement, tile and plastic floors, no corner plastering required; |
|
14. Core Advantage |
Equipped with exclusive filling enhancement function to prevent liquid foaming and splashing during filling. |
product feature and application
Equipped with PLC programmable control system and touch screen human-machine interface, the whole machine realizes full-process automatic operation with one-click start without manual intervention. It supports quick switching of various carton specifications and parameter adjustment in minutes, adapting to large-scale mass production with low power consumption and low failure rate, greatly improving production efficiency.This equipment is widely applied in large-scale egg processing factories, food deep-processing enterprises, central kitchens, baking raw material manufacturers and catering supply chain enterprises.
product details
Standardized roof box processing technology: paper sheet base bottom pre-forming processing, bottom heating shaping treatment, bottom sealing and forming, ultrasonic fitting and covering, top pre-forming treatment, quantitative material filling, top sealing and forming, digital date spraying, and unified finished product packaging. The production procedures are accurately and automatically controlled by the computer system throughout the whole process with minimal manual intervention, and a single person can complete full-line production work.
product qualification
Specially developed for the characteristics of liquid egg materials with years of industry experience, this liquid egg carton filling machine solves the industry pain points of traditional filling equipment such as easy foaming, inaccurate metering, incomplete sterilization and difficult residue cleaning. The whole machine complies with national food machinery safety standards and international food hygiene specifications, with core accessories of well-known brands, featuring stable operation, durability and extremely low failure rate. Relying on ultra-clean aseptic filling technology, it effectively ensures zero bacteria and pollution in the whole filling process of liquid eggs.
Deliver, shipping and serving
|
Business Analysis |
Market forecasting and profit analysis for clients |
|
Enterprise Service |
Organize enterprise field visits and inspections |
|
Skill Training |
Comprehensive theoretical and practical training |
|
On-site Service |
Free installation & debugging, overseas services per agreement |
|
Quick Response |
48-hour on-site service support |
|
Quality Warranty |
1-year full machine warranty and lifelong service |
|
Intelligence Support |
Continuous industry technology and intelligence supply |
|
Equipment Upgrade |
Follow-up service for equipment update and improvement |
FAQ
Q1:How should equipment undergo routine maintenance?
A1: Daily equipment maintenance is relatively low in difficulty and simple to operate. Key daily maintenance points:
①After each production run, promptly clean filling valves, material pipelines, and other components in contact with materials to prevent bacterial growth from residue;
②Regularly inspect transmission components (e.g., chains, gears) and add lubricant as needed to ensure smooth operation;
③Periodically check seal wear and replace immediately if leaks or damage are detected;
④Maintain clean equipment surfaces to prevent dust and debris accumulation;
⑤Strictly follow the equipment operation manual to prevent damage from improper use.
Q2: How can I obtain detailed equipment specifications and pricing?
A2: You may obtain detailed specifications and quotes through the following methods:
① Visit our official website (www.sybeiya.com) and check the detailed parameters of the gable top carton filling machine in the Product Center section, or submit an online inquiry;
② Directly call our sales hotline (+8613840309495) to discuss your requirements with a sales consultant and receive a precise quotation;
③ Bring your product samples and requirement specifications to our factory for an on-site visit. We will arrange for professionals to provide detailed product introductions and quotation proposals.
