Product introduction

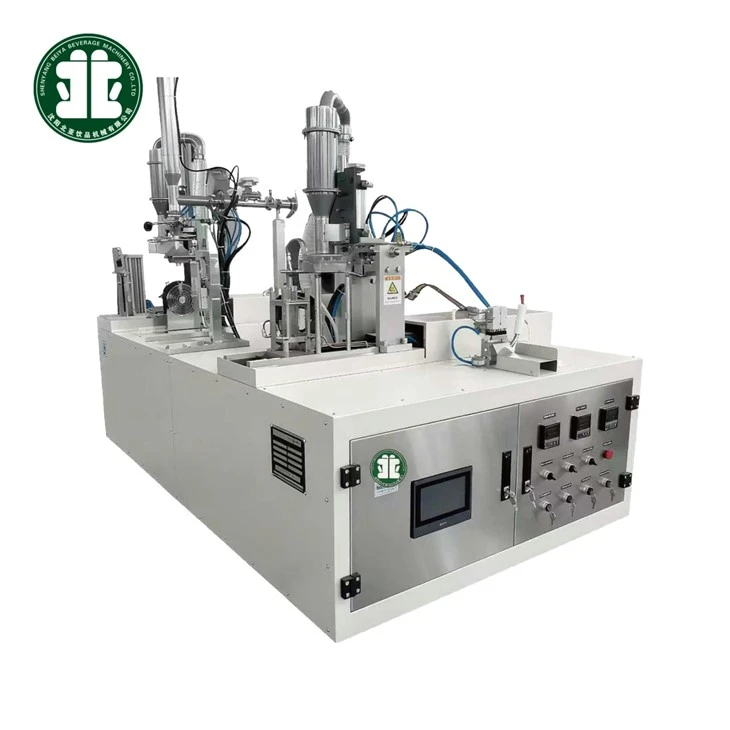

Model BW-500 is a mini gable top carton filling machine independently developed by Beiya Enterprise. Tailored to the operational characteristics and market demands of domestic Chinese manufacturers, this device features low automation configuration and moderate production capacity. It boasts multiple advantages including small floor space, low power consumption, simple operational logic and convenient daily maintenance. With a cost-effective price positioning, it serves as the optimal packaging equipment for small and medium-sized factories or manufacturers with low production throughput to produce high-grade gable top carton products.
product Parameter(specification)
|
Capacity |
500 - 1000 ml |
Dimensions |
Length * Width * Height: 1.6 * 1.2 * 1.8 meters |
|
Production |
500 boxes per hour (based on 500ml) |
Compressed air |
Flow rate ≥0.8 M³/min, Pressure: 0.8 - 1.0 MPa, Oil-free, Dust-free |
|
Material |
Roof cardboard box or roof aluminum foil box |
Cooling water |
Flow rate: ≥20 L/min, Temperature: Room temperature |
|
Filling temperature |
2-88℃ |
Net weight |
500KG |
|
Shelf life |
Dependent on product type and manufacturing process |
Installation requirements |
Cement, floor tiles, or plastic flooring are all acceptable. No corner plastering is required |
|
Total machine power |
15KW (three-phase power supply) |
product feature and application
This machine is fitted with an elongated filling nozzle, which can extend to the deep interior of gable top cartons to complete accurate filling. It effectively avoids liquid overflow and carton mouth pollution, and can directly finish filling after carton folding and forming. Adopting a desktop mini structure, the equipment occupies little working space. It abandons complex motors and pneumatic components, with a simple overall structure and ultra-low failure rate, ensuring stable long-term operation. It is widely suitable for filling production of skin care products, dairy products, baking raw materials, thick drinks and various sauces.
product details
Production Process Overview: The gable carton manufacturing workflow includes 6 sequential processing steps, normally operated by a team of 4–5 workers.
Bottom Sealing
Raw carton boards are manually fed into the machine. Through bottom forming and sealing treatment, semi-finished open-top cartons are obtained.
Lid Installation
Operators fit independent lids onto open-top cartons. The ultrasonic welding process realizes stable connection between lids and carton bodies without glue.
Upper Edge Pre-folding
The top edges of lidded cartons are folded in advance according to mould standards, optimizing the flatness for subsequent sealing procedures.
Product Filling
Workers arrange cartons in order, and the equipment quantitatively fills internal materials to achieve full loading.
Final Top Sealing
The filled cartons undergo integral top sealing to form complete gable-top carton appearances.
Coding and Marking
Finished cartons are printed with production dates to meet factory traceability standards and complete final output.
product qualification
Designed with reference to advanced similar equipment from the United States, Norway and other countries, this gable-top carton packaging machine leverages Shenyang's solid manufacturing foundation for mechanical equipment and the company's more than ten years of professional experience in beverage and dairy machinery production, ensuring the excellent quality and reliable performance of Beiya machinery
Deliver, shipping and serving
Support customers with market analysis, future demand forecasting and profit calculation.
Schedule enterprise investigation and field visitation services for partner clients.
Deliver integrated training programs including professional theories and on-site operational practices.
Free on-site installation tutoring and equipment debugging services are available, while overseas service standards are determined by bilateral agreements.
Implement 48-hour fast response mechanism for on-site after-sales problems.
The entire machine enjoys one-year full warranty service and lifelong technical maintenance service.
Continuously share cutting-edge industry technology documents and industry intelligence with customers.
Offer targeted follow-up services for equipment function update and technical improvement.
FAQ
Q1: What are the advantages of the core technologies used in the equipment?
A1: The core technologies offer significant advantages:
① High-precision filling valves ensure filling accuracy with an error margin ≤±1%, guaranteeing uniform product volume per pouch;
② An intelligent control system enables simple and convenient operation, allowing real-time monitoring of production parameters for timely adjustments and maintenance.
Q2: In one machine can fill for different volume?
A2:The equipment supports multiple gable-top packaging specifications, accommodating filling capacities of 200ml, 330ml, 380ml, 500ml, 750ml, 1000ml, and 2000ml. Note that each machine supports only one box base size, but the box height is flexibly adjustable. By adjusting the height, it can fill beverages of different capacities, achieving multi-capacity compatibility. Additionally, the equipment supports composite packaging materials made from different materials (e.g., paper-aluminum-plastic composite, plastic-plastic composite, etc.), and can be customized and debugged to match the packaging requirements of the customer's products.
It is also compatible with packaging materials and lids from various global manufacturers, ensuring complete compatibility.
