Product introduction
The detergent packaging machine is an automated packaging equipment customized for daily chemical washing products. It is suitable for various liquid, powder and granular detergents such as laundry liquid, washing powder, dish soap, disinfectant and laundry pods. The equipment integrates full-process functions including automatic feeding, metering, bag making, filling, sealing, cutting and finished product output. It solves industry pain points such as powder leakage, liquid leakage, inaccurate metering and irregular packaging of washing products, and adapts to large, medium and small batch scale production, serving as the core automatic supporting equipment for the daily chemical washing industry.
product Parameter(specification)
This special equipment is suitable for the filling production of liquid materials such as food and beverages. The whole machine meets safety material standards. Except for the high-rigidity support structure, all parts are made of food-grade stainless steel with special surface treatment, adapting to the environment of clean production workshops. The equipment has stable mass production capacity, completing 3000 filling boxes per hour. One of the four box specifications (57×57mm, 70×70mm, 83×83mm, 95×95mm) can be selected according to production needs, and simultaneous multi-specification production is not supported. Each box specification matches an exclusive filling range to accurately meet production needs of different capacities: the small-capacity 57×57mm box for 250-500ml, medium-capacity 70×70mm and 83×83mm boxes for 500-1000ml and 1000-1500ml respectively, and large-capacity 95×95mm box for 1500-2000ml. It flexibly adapts to sealed and open production needs, supporting capping and non-capping operations for 26-36mm lids, with dual functions and single mode selection for each operation.
Adopting room-temperature filling process, the equipment is suitable for most liquid materials without temperature control equipment. The operating power is 25KW, running stably with three-phase industrial power supply. The shelf life of finished products is not fixed, which is mainly determined by material category and production process. The supporting production conditions are clear: clean compressed air needs pressure of 1.0-1.4Mpa and flow rate of 1.4-2m³/min (oil-free and dust-free); cooling water needs continuous supply with flow rate ≥40L/min and constant temperature of 30℃. The equipment covers an area of 4m×1.4m×2.8m with a total weight of 3500KG, convenient for workshop layout. It has low installation threshold, which can be installed on conventional industrial cement, tile and plastic floors without additional corner treatment. The exclusive filling enhancement function effectively avoids liquid foaming and splashing during filling, reducing material loss and equipment pollution.
product feature and application
Leak-proof, Pollution-proof and Dust-proof: Designed with sealed filling structure and dust removal negative pressure system, it prevents liquid detergent dripping and overflowing, and eliminates dust and powder leakage of powdered detergents, keeping the production workshop clean and meeting the hygiene standards of daily chemical production. This equipment is widely used in the packaging of various products in the daily chemical washing industry, covering household cleaning, industrial cleaning, commercial cleaning and other fields. It can professionally package a full range of washing and cleaning products such as laundry liquid, concentrated laundry liquid, washing powder, soap powder, dish soap, laundry pods, disinfectant, bactericide, floor cleaner and oil stain remover.
product details

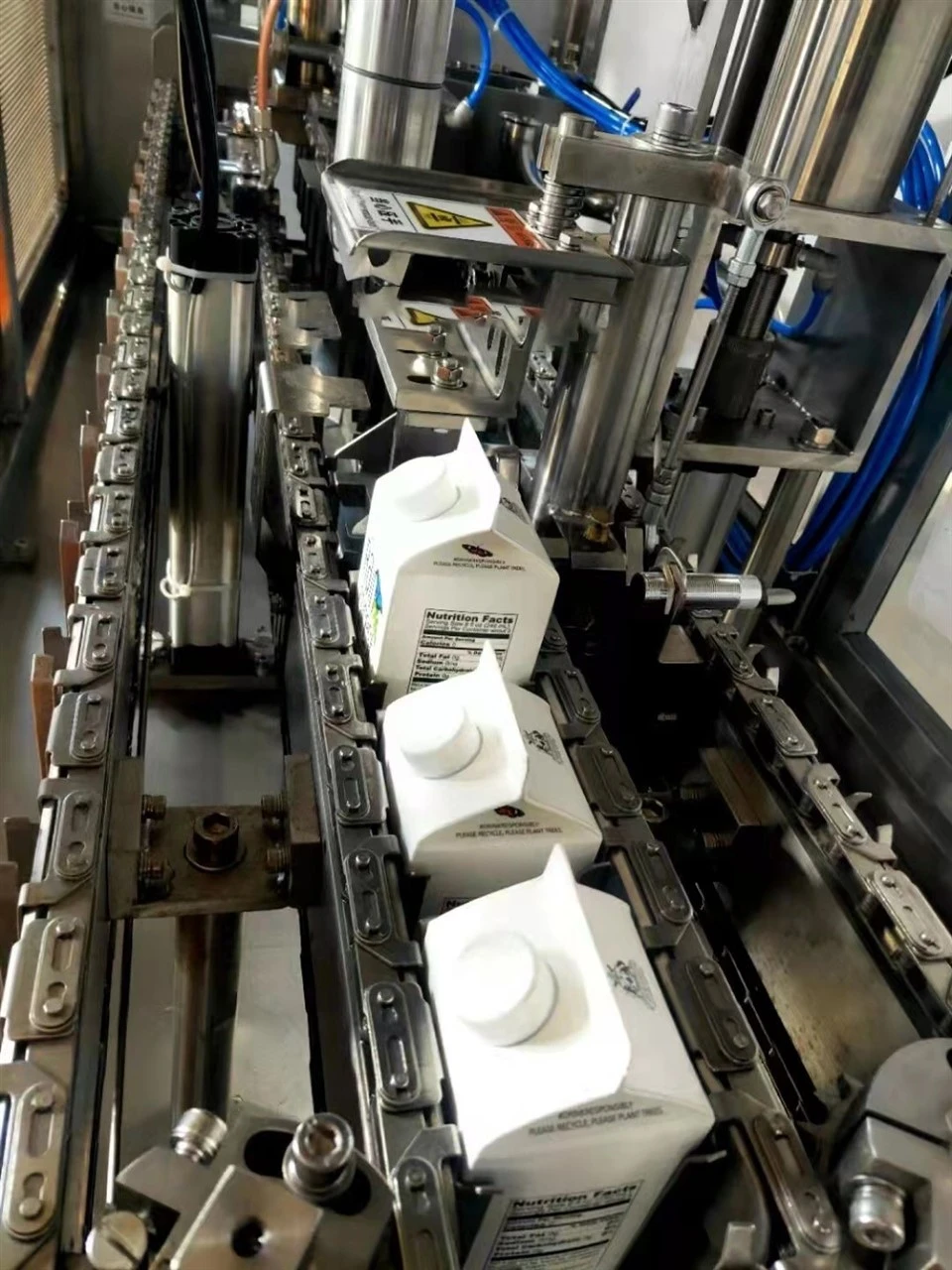

Refined roof box production technology: paper sheet bottom pre-forming and shaping, bottom thermal processing shaping and reinforcement, bottom sealing forming and sealing, high-precision ultrasonic film covering and lamination, top pre-forming treatment, quantitative material filling, top sealing and forming, laser date marking and printing, and standardized finished product packaging. The whole procedure is fully and accurately executed by computer programs with controllable whole process, and only single-person daily supervision is required.
product qualification
Developed based on mature daily chemical packaging technology, this detergent packaging machine is specially optimized for the characteristics of washing materials such as easy adhesion, corrosion, dusting and leakage. The core accessories of the equipment are high-quality branded parts, which have passed tens of thousands of hours of continuous operation tests with stable performance and low failure rate. The whole machine complies with the safety production and hygiene standards of the daily chemical industry, and its metering accuracy, sealing quality and production speed are better than the general industry standards.
Deliver, shipping and serving
Business Decision Services:
1. Professional market forecasting service;
2. Corporate profit analysis service.
Enterprise Operation Services:
1. On-site visit organization;
2. Enterprise inspection arrangement.
Technical Training Services: Comprehensive theoretical and practical skill training.
Equipment Engineering Services:
1. Free on-site installation & debugging;
2. Standardized overseas service (per bilateral agreements).
After-sales Response Services: 48-hour rapid on-site service.
Quality Guarantee Services: One-year full machine warranty + lifelong continuous service.
Industry Information Services: Continuous technical materials and intelligence output.
Equipment Upgrade Services: Follow-up support for equipment update and improvement.
FAQ
Q1: How can I obtain detailed equipment specifications and pricing?
A1: You may obtain detailed specifications and quotes through the following methods:
① Visit our official website (www.sybeiya.com) and check the detailed parameters of the gable top carton filling machine in the Product Center section, or submit an online inquiry;
② Directly call our sales hotline (+8613840309495) to discuss your requirements with a sales consultant and receive a precise quotation;
③ Bring your product samples and requirement specifications to our factory for an on-site visit. We will arrange for professionals to provide detailed product introductions and quotation proposals.
Q2: Does the equipment support customization?
A2: Customization services are available. We can tailor gable top carton filling machines to specific client requirements, including adapting filling processes for unique beverages, accommodating special packaging specifications, and integrating additional functional modules to deliver bespoke solutions.
